購買 APTM10AM02FG與BYCHPS
購買即有保證

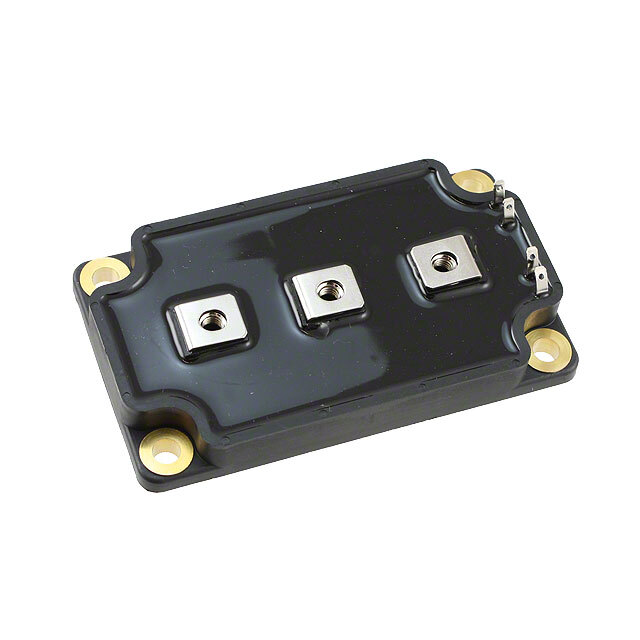

APTM10AM02FG
- 型號:
- APTM10AM02FG
- 製造商:
- Microsemi
- 描述:
- MOSFET 2N-CH 100V 495A SP6
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13541 Pieces
簡單介紹
BYCHIPS是 APTM10AM02FG的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的APTM10AM02FG購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 4V @ 10mA |
|---|---|
| 供應商設備封裝: | SP6 |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 2.5 mOhm @ 200A, 10V |
| 功率 - 最大: | 1250W |
| 封装: | Bulk |
| 封裝/箱體: | SP6 |
| 其他名稱: | APTM10AM02FGMI APTM10AM02FGMI-ND |
| 工作溫度: | -40°C ~ 150°C (TJ) |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 22 Weeks |
| 製造商零件編號: | APTM10AM02FG |
| 輸入電容（Ciss）（Max）@ Vds: | 40000pF @ 25V |
| 柵極電荷（Qg）（Max）@ Vgs: | 1360nC @ 10V |
| FET型: | 2 N-Channel (Half Bridge) |
| FET特點: | Standard |
| 展開說明: | Mosfet Array 2 N-Channel (Half Bridge) 100V 495A 1250W Chassis Mount SP6 |
| 漏極至源極電壓（Vdss）: | 100V |
| 描述: | MOSFET 2N-CH 100V 495A SP6 |
| 電流 - 25°C連續排水（Id）: | 495A |
| Email: | [email protected] |
