購買 APTGLQ200H120G與BYCHPS
購買即有保證

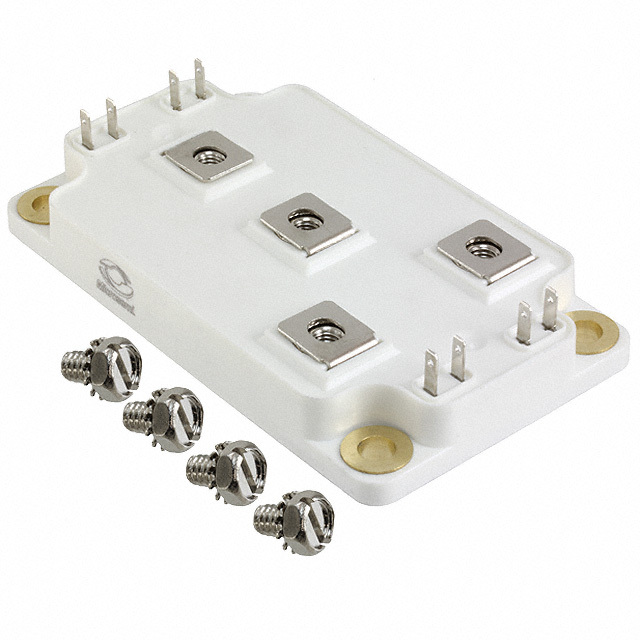

APTGLQ200H120G
- 型號:
- APTGLQ200H120G
- 製造商:
- Microsemi
- 描述:
- PWR MOD IGBT4 1200V 350A SP6
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19279 Pieces
簡單介紹
BYCHIPS是 APTGLQ200H120G的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的APTGLQ200H120G購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 1200V |
|---|---|
| 的VCE（on）（最大）@ VGE，IC: | 2.4V @ 15V, 200A |
| 供應商設備封裝: | SP6 |
| 系列: | - |
| 功率 - 最大: | 1000W |
| 封裝/箱體: | SP6 |
| 工作溫度: | -40°C ~ 175°C (TJ) |
| NTC熱敏電阻: | No |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 22 Weeks |
| 製造商零件編號: | APTGLQ200H120G |
| 輸入電容（連鎖商店）@的Vce: | 12.3nF @ 25V |
| 輸入: | Standard |
| IGBT類型: | Trench Field Stop |
| 展開說明: | IGBT Module Trench Field Stop Full Bridge 1200V 350A 1000W Chassis Mount SP6 |
| 描述: | PWR MOD IGBT4 1200V 350A SP6 |
| 電流 - 集電極截止（最大）: | 100µA |
| 電流 - 集電極（Ic）（最大）: | 350A |
| 組態: | Full Bridge |
| Email: | [email protected] |
