購買 AOZ8328DI與BYCHPS
購買即有保證

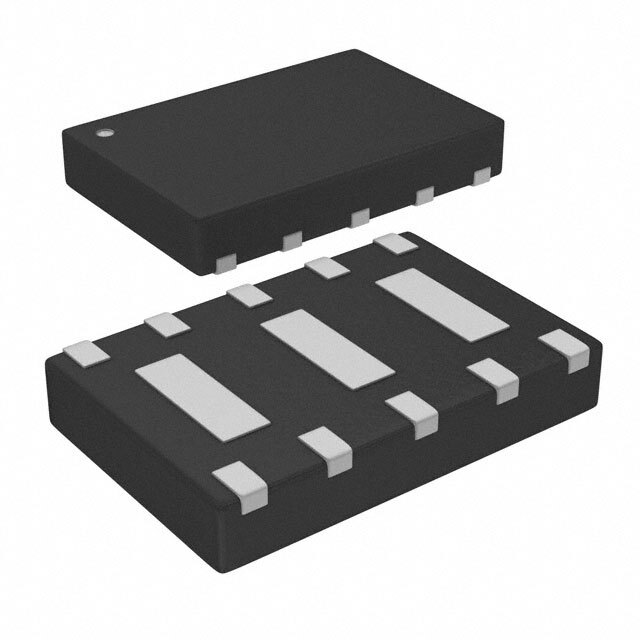

AOZ8328DI
- 型號:
- AOZ8328DI
- 描述:
- TVS DIODE 2.5VWM 16VC 10DFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16510 Pieces
- 數據表:
- AOZ8328DI.pdf
簡單介紹
BYCHIPS是 AOZ8328DI的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AOZ8328DI購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 反向隔離（標準值）: | 2.5V (Max) |
|---|---|
| 電壓 - 箝位（最大）@ Ipp: | 16V |
| 電壓 - 擊穿（最小值）: | - |
| 單向通道: | 4 |
| 類型: | Steering (Rail to Rail) |
| 供應商設備封裝: | 10-DFN (3x2) |
| 系列: | - |
| 電源線保護: | Yes |
| 功率峰值脈衝: | 450W |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 10-UDFN Exposed Pad |
| 工作溫度: | -40°C ~ 85°C (TA) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | AOZ8328DI |
| 描述: | TVS DIODE 2.5VWM 16VC 10DFN |
| 電流 - 峰值脈衝（10 /1000μs）: | 25A (8/20µs) |
| 電容@頻率: | 2.8pF @ 1MHz |
| 應用: | Ethernet, Telecom |
| Email: | [email protected] |
