購買 ALTS3125與BYCHPS
購買即有保證

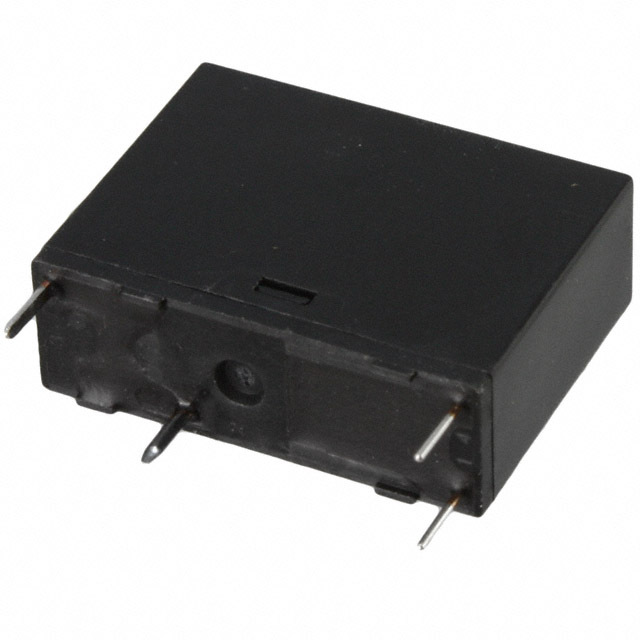

ALTS3125
- 型號:
- ALTS3125
- 製造商:
- Panasonic
- 描述:
- RELAY GEN PURPOSE SPST 5A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15737 Pieces
- 數據表:
- ALTS3125.pdf
簡單介紹
BYCHIPS是 ALTS3125的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ALTS3125購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 9 VDC |
|---|---|
| 關閉電壓（最小）: | 0.6 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 277VAC - Max |
| 系列: | ALTS |
| 發布時間: | 5ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 255-3090 |
| 工作溫度: | -40°C ~ 70°C |
| 操作時間: | 15ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | ALTS3125 |
| 特徵: | - |
| 展開說明: | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE SPST 5A 12V |
| 觸點額定值（電流）: | 5A |
| 觸點材料: | Silver Tin Oxide (AgSnO) |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 514 Ohms |
| 線圈功率: | 280 mW |
| 線圈電流: | 23.3mA |
| Email: | [email protected] |
