購買 ALS30A222NP500與BYCHPS
購買即有保證

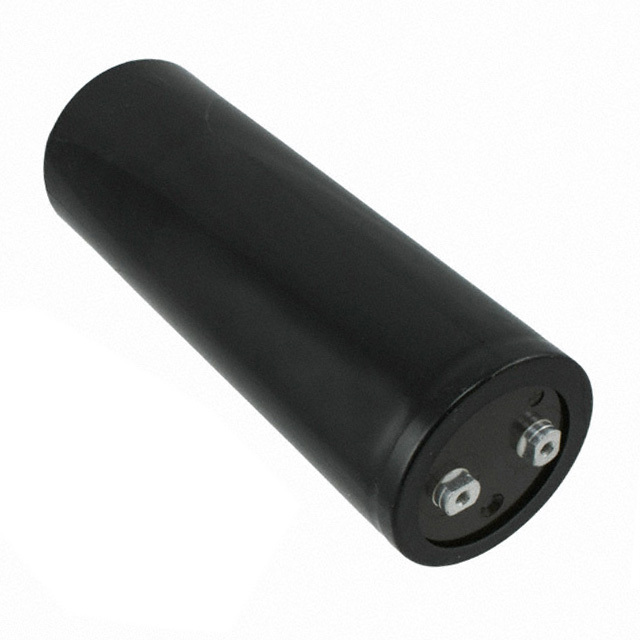

ALS30A222NP500
- 型號:
- ALS30A222NP500
- 製造商:
- KEMET
- 描述:
- CAP ALUM 2200UF 20% 500V SCREW
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17954 Pieces
簡單介紹
BYCHIPS是 ALS30A222NP500的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ALS30A222NP500購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓: | 500V |
|---|---|
| 公差: | ±20% |
| 表面貼裝佔地面積: | - |
| 尺寸/尺寸: | 3.032" Dia (77.00mm) |
| 系列: | ALS30 |
| 紋波電流: | 14.3A @ 100Hz |
| 極化: | Polar |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Can - Screw Terminals |
| 其他名稱: | 399-5642 A331TS222M500A |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | ALS30A222NP500 |
| 壽命@溫度。: | 5000 Hrs @ 85°C |
| 引線間距: | 1.252" (31.80mm) |
| 阻抗: | 44 mOhm |
| 高度 - 座高（最大）: | 5.748" (146.00mm) |
| 展開說明: | 2200µF 500V Aluminum Capacitors Radial, Can - Screw Terminals 80 mOhm @ 100Hz 5000 Hrs @ 85°C |
| ESR（等效串聯電阻）: | 80 mOhm @ 100Hz |
| 描述: | CAP ALUM 2200UF 20% 500V SCREW |
| 電容: | 2200µF |
| 應用: | General Purpose |
| Email: | [email protected] |
ALS30A222NP500的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
ALS30A102KF500 | KEMET | CAP ALUM 1000UF 20% 500V SCREW | 在線詢價 |
 |
ALS30A222NF450 | KEMET | CAP ALUM 2200UF 20% 450V SCREW | 在線詢價 |
 |
ALS30G1002NP | KEMET | CAP ALUM 20% SCREW | 在線詢價 |
 |
ALS30A223KE063 | KEMET | CAP ALUM 22000UF 20% 63V SCREW | 在線詢價 |
 |
ALS30A222MF400 | KEMET | CAP ALUM 2200UF 20% 400V SCREW | 在線詢價 |
|
ALS30A221DA400 | KEMET | CAP ALUM 220UF 20% 400V SCREW | 在線詢價 |
 |
ALS30A332LF400 | KEMET | CAP ALUM 3300UF 20% 400V SCREW | 在線詢價 |
|
ALS30A222KF400 | KEMET | CAP ALUM 2200UF 20% 400V SCREW | 在線詢價 |
|
ALS30A472NT500 | KEMET | CAP ALUM 4700UF 20% 500V SCREW | 在線詢價 |
|
ALS30A103KE100 | KEMET | CAP ALUM 10000UF 20% 100V SCREW | 在線詢價 |
