購買 AEV14024W與BYCHPS
購買即有保證

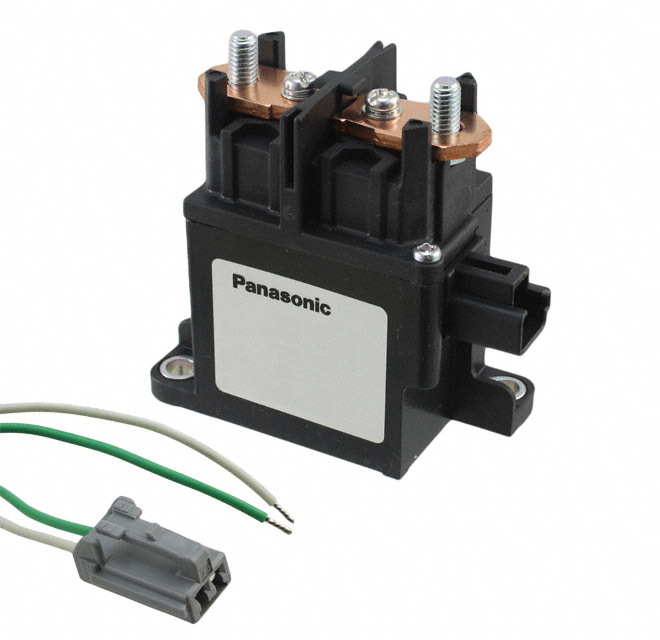

AEV14024W
- 型號:
- AEV14024W
- 製造商:
- Panasonic
- 描述:
- RELAY AUTOMOTIVE SPST 120A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14578 Pieces
- 數據表:
- AEV14024W.pdf
簡單介紹
BYCHIPS是 AEV14024W的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AEV14024W購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 18 VDC |
|---|---|
| 關閉電壓（最小）: | 2 VDC |
| 端接類型: | Stud |
| 切換電壓: | 400VDC - Nom |
| 系列: | AEV |
| 發布時間: | 30ms |
| 繼電器類型: | Automotive |
| 封装: | Tray |
| 其他名稱: | 255-3042 |
| 工作溫度: | -40°C ~ 80°C |
| 操作時間: | 50ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 17 Weeks |
| 製造商零件編號: | AEV14024W |
| 特徵: | - |
| 展開說明: | Automotive Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount |
| 描述: | RELAY AUTOMOTIVE SPST 120A 24V |
| 觸點額定值（電流）: | 120A |
| 觸點材料: | - |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | - |
| 線圈功率: | 4.2 W |
| 線圈電流: | 176mA |
| Email: | [email protected] |
