購買 AEMIF-0603-401M-16-T與BYCHPS
購買即有保證

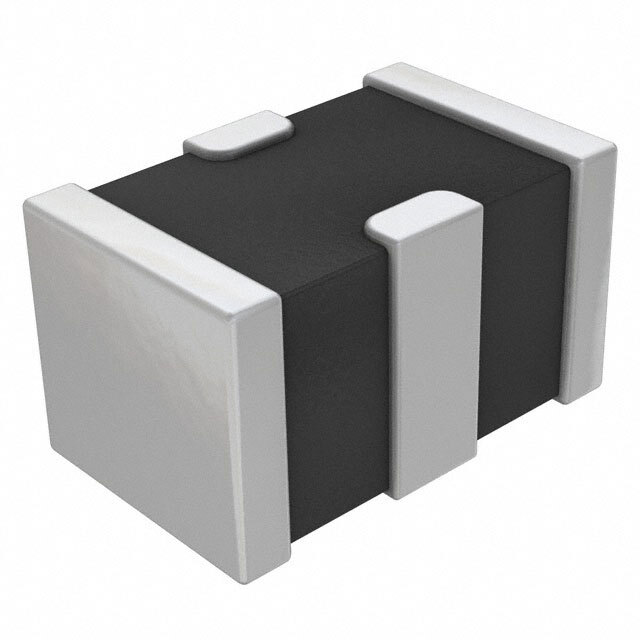

AEMIF-0603-401M-16-T
- 型號:
- AEMIF-0603-401M-16-T
- 描述:
- FILTER RC(PI) 0.8 OHM SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13867 Pieces
簡單介紹
BYCHIPS是 AEMIF-0603-401M-16-T的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AEMIF-0603-401M-16-T購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | 16V |
|---|---|
| 值: | R = 0.8 Ohms |
| 類型: | Low Pass |
| 技術: | RC (Pi) |
| 尺寸/尺寸: | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| 系列: | AEMIF-0603 |
| 電阻 - 通道（歐姆）: | 0.8 |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 0603 (1608 Metric) |
| 其他名稱: | 535-12763-2 |
| 工作溫度: | -40°C ~ 85°C |
| 通道數: | 1 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | AEMIF-0603-401M-16-T |
| 高度: | 0.031" (0.79mm) |
| 濾波器階: | 2nd |
| 展開說明: | RC (Pi) EMI Filter 2nd Order Low Pass 1 Channel R = 0.8 Ohms 300mA 0603 (1608 Metric) |
| ESD保護: | No |
| 描述: | FILTER RC(PI) 0.8 OHM SMD |
| 當前: | 300mA |
| 中心/截止頻率: | 400MHz (Cutoff) |
| 衰減值: | 20dB @ 800MHz ~ 2GHz |
| 應用: | General Purpose |
| Email: | [email protected] |
