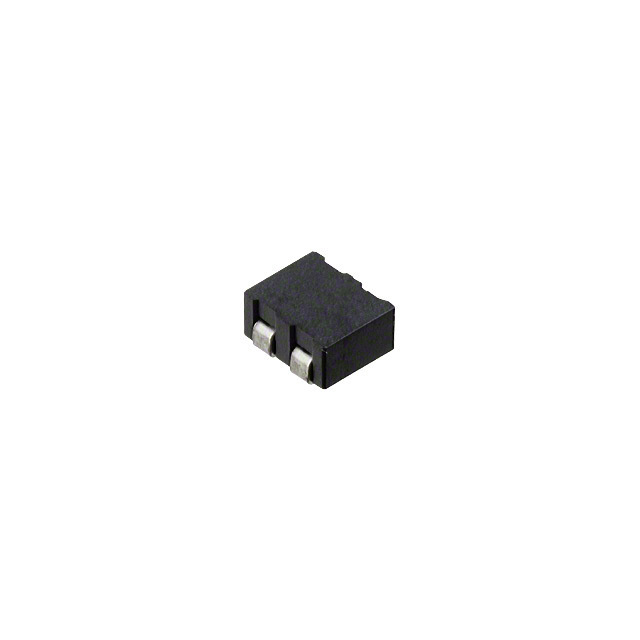

ACSB-05-T
- 型號:
- ACSB-05-T
- 描述:
- CMC 5A 2LN 35 OHM SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15102 Pieces
簡單介紹
BYCHIPS是 ACSB-05-T的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ACSB-05-T購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | - |
|---|---|
| 額定電壓 - AC: | - |
| 尺寸/尺寸: | 0.220" L x 0.189" W (5.60mm x 4.80mm) |
| 系列: | ACSB-05 |
| 評級: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 2218 (5648 Metric), 4 Lead |
| 其他名稱: | 535-12411-2 |
| 工作溫度: | -40°C ~ 85°C |
| 行數: | 2 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | ACSB-05-T |
| 電感@頻率: | - |
| 頻率對應阻抗: | 35 Ohm @ 100MHz |
| 高度（最大）: | 0.118" (3.00mm) |
| 過濾器類型: | - |
| 特徵: | - |
| 展開說明: | 2 Line Common Mode Choke Surface Mount 35 Ohm @ 100MHz 5A DCR 3 mOhm (Typ) |
| 描述: | CMC 5A 2LN 35 OHM SMD |
| 直流電阻（DCR）（最大值）: | 3 mOhm (Typ) |
| 卡厚度（mm）: | 5A |
| 認證: | - |
