購買 ACASA5002E5002P100與BYCHPS
購買即有保證

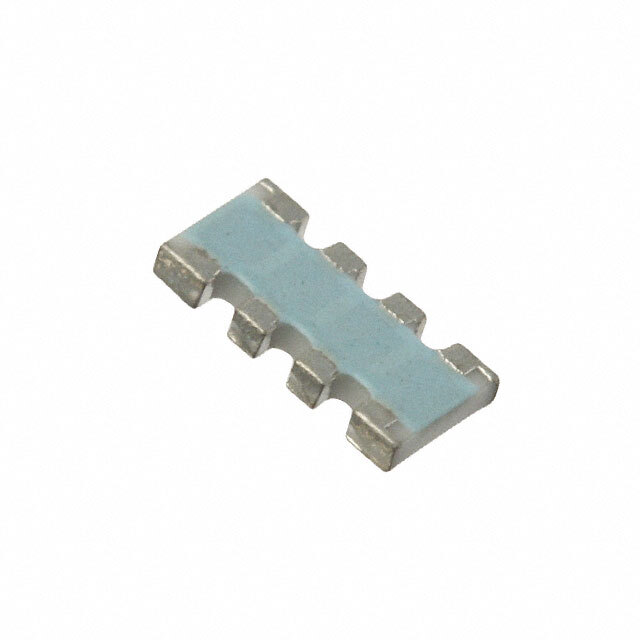

ACASA5002E5002P100
- 型號:
- ACASA5002E5002P100
- 描述:
- RES ARRAY 4 RES 50K OHM 1206
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14462 Pieces
簡單介紹
BYCHIPS是 ACASA5002E5002P100的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ACASA5002E5002P100購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 公差: | ±0.25% |
|---|---|
| 溫度係數: | ±25ppm/°C |
| 供應商設備封裝: | 0612 |
| 尺寸/尺寸: | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| 系列: | ACA - Precision |
| 電阻（歐姆）: | 50k |
| 每個元件的功率: | 100mW |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 1206 (3216 Metric), Convex, Long Side Terminals |
| 其他名稱: | ACASA-50K/50K-ETR |
| 工作溫度: | -55°C ~ 125°C |
| 電阻數: | 4 |
| 引腳數目: | 8 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | ACASA5002E5002P100 |
| 高度 - 座高（最大）: | 0.022" (0.55mm) |
| 展開說明: | 50k Ohm ±0.25% 100mW Power Per Element Isolated Resistor Network/Array ±25ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals |
| 描述: | RES ARRAY 4 RES 50K OHM 1206 |
| 電路類型: | Isolated |
| 應用: | Voltage Divider (TCR Matched) |
| Email: | [email protected] |
ACASA5002E5002P100的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
ACASA5002E5002P1AT | Vishay Beyschlag | RES ARRAY 4 RES 50K OHM 1206 | 在線詢價 |
|
ACASA5002S5002P1AT | Vishay Beyschlag | RES ARRAY 4 RES 50K OHM 1206 | 在線詢價 |
|
ACASA500225002P100 | Vishay Beyschlag | RES ARRAY 4 RES 50K OHM 1206 | 在線詢價 |
|
ACASA5002S5002P100 | Vishay Beyschlag | RES ARRAY 4 RES 50K OHM 1206 | 在線詢價 |
