購買 9852-05-00TR與BYCHPS
購買即有保證

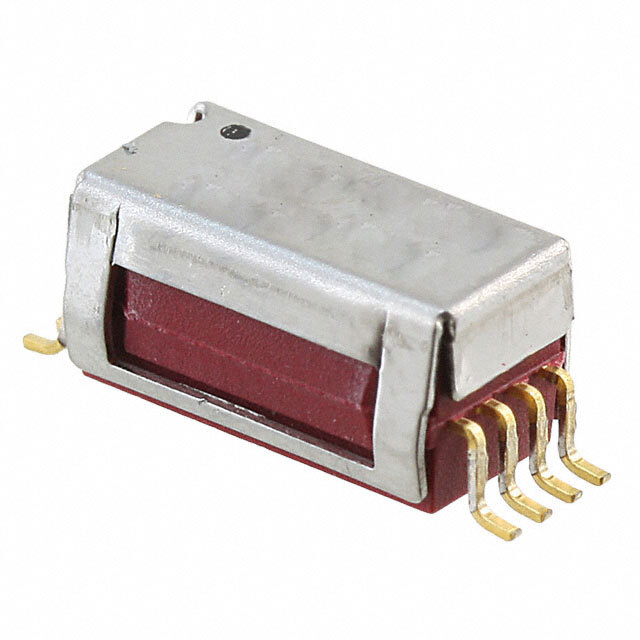

9852-05-00TR
- 型號:
- 9852-05-00TR
- 製造商:
- Coto Technology
- 描述:
- RELAY RF SPDT 100MA 5V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19769 Pieces
- 數據表:
- 9852-05-00TR.pdf
簡單介紹
BYCHIPS是 9852-05-00TR的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的9852-05-00TR購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 3.8 VDC |
|---|---|
| 關閉電壓（最小）: | 0.4 VDC |
| 端接類型: | Gull Wing |
| 切換電壓: | 30VAC, 30VDC - Max |
| 系列: | 9800 |
| 發布時間: | 1ms |
| 繼電器類型: | RF |
| 封装: | Tape & Reel (TR) |
| 其他名稱: | 306-1379-2 |
| 工作溫度: | -20°C ~ 85°C |
| 操作時間: | 1ms |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 2 (1 Year) |
| 製造商標準交貨期: | 20 Weeks |
| 製造商零件編號: | 9852-05-00TR |
| 特徵: | Magnetic Shield |
| 展開說明: | RF Relay SPDT (1 Form C) Surface Mount |
| 描述: | RELAY RF SPDT 100MA 5V |
| 觸點額定值（電流）: | 100mA |
| 觸點材料: | - |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 110 Ohms |
| 線圈功率: | - |
| 線圈電流: | 45.5mA |
| Email: | [email protected] |
