購買 947C361K801CAMS與BYCHPS
購買即有保證

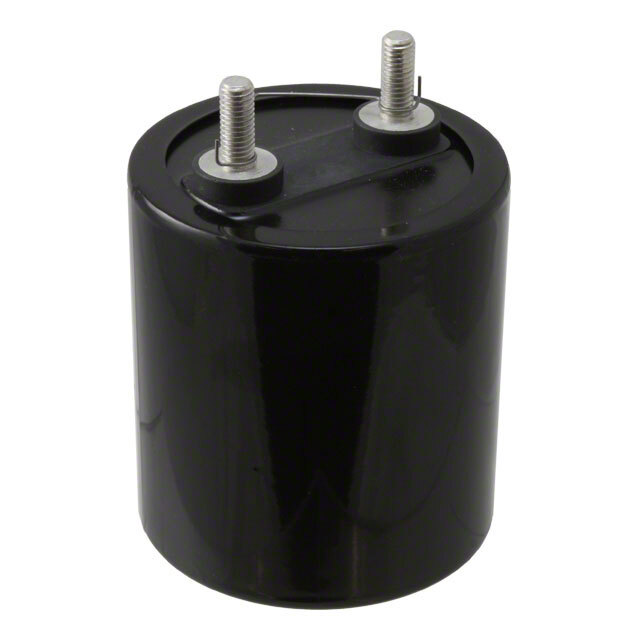

947C361K801CAMS
- 型號:
- 947C361K801CAMS
- 描述:
- CAP FILM 360UF 10% 800VDC SCREW
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18624 Pieces
簡單介紹
BYCHIPS是 947C361K801CAMS的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的947C361K801CAMS購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 800V |
|---|---|
| 額定電壓 - AC: | 230V |
| 公差: | ±10% |
| 終止: | Screw Terminals |
| 尺寸/尺寸: | 3.543" Dia (90.00mm) |
| 系列: | 947C |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Can |
| 其他名稱: | 338-1398 |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Chassis, Stud Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 19 Weeks |
| 製造商零件編號: | 947C361K801CAMS |
| 引線間距: | 1.772" (45.00mm) |
| 高度 - 座高（最大）: | 3.898" (99.00mm) |
| 特徵: | Long Life, Low ESR |
| 展開說明: | 360µF ±10% Film Capacitor 230V 800V Polypropylene (PP), Metallized Radial, Can |
| ESR（等效串聯電阻）: | 1.9 mOhm |
| 絕緣材料: | Polypropylene (PP), Metallized |
| 描述: | CAP FILM 360UF 10% 800VDC SCREW |
| 電容: | 360µF |
| 應用: | DC Link, DC Filtering |
| Email: | [email protected] |
947C361K801CAMS的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
947C361K801CAI | Cornell Dubilier Electronics (CDE) | CAP FILM 360UF 10% 800VDC SCREW | 在線詢價 |
 |
947C391K102CCI | Cornell Dubilier Electronics (CDE) | CAP FILM 390UF 10% 1KVDC SCREW | 在線詢價 |
|
947C361K801CAIS | Cornell Dubilier Electronics (CDE) | CAP FILM 360UF 10% 800VDC SCREW | 在線詢價 |
|
947C361K801CAM | Cornell Dubilier Electronics (CDE) | CAP FILM 360UF 10% 800VDC SCREW | 在線詢價 |
|
947C391K102CCM | Cornell Dubilier Electronics (CDE) | CAP FILM 390UF 10% 1KVDC SCREW | 在線詢價 |
 |
947C311K102CBMS | Cornell Dubilier Electronics (CDE) | CAP FILM 310UF 10% 1KVDC SCREW | 在線詢價 |
