購買 9-1393303-7與BYCHPS
購買即有保證

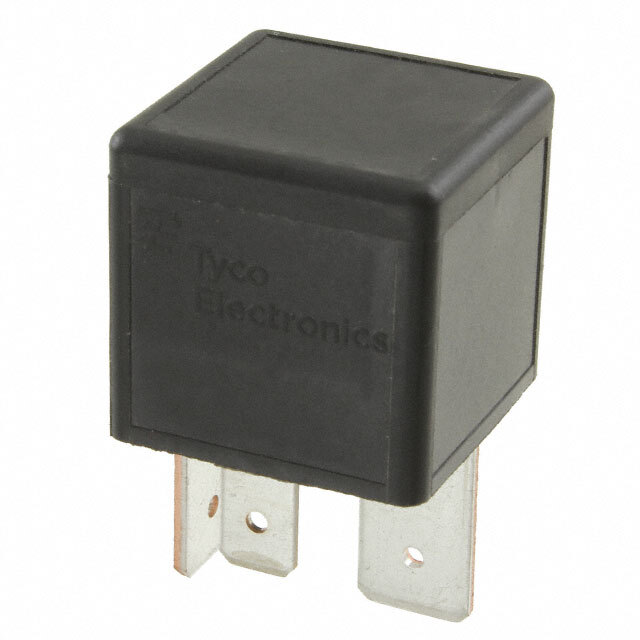

9-1393303-7
- 型號:
- 9-1393303-7
- 描述:
- RELAY AUTOMOTIVE SPST-NO 70A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12874 Pieces
簡單介紹
BYCHIPS是 9-1393303-7的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的9-1393303-7購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 14.4 VDC |
|---|---|
| 關閉電壓（最小）: | 3.2 VDC |
| 端接類型: | Plug In, Quick Connect - Multiple Sizes |
| 切換電壓: | 24VDC - Nom |
| 系列: | F7 |
| 發布時間: | 2ms |
| 繼電器類型: | Automotive |
| 封装: | Bulk |
| 其他名稱: | 9-1393303-7-ND A122269 V23134J0053D642 |
| 工作溫度: | -40°C ~ 125°C |
| 操作時間: | 7ms |
| 安裝類型: | Socketable |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 20 Weeks |
| 製造商零件編號: | 9-1393303-7 |
| 特徵: | - |
| 展開說明: | Automotive Relay SPST-NO (1 Form A) 24VDC Coil Socketable |
| 描述: | RELAY AUTOMOTIVE SPST-NO 70A 24V |
| 觸點額定值（電流）: | 70A |
| 觸點材料: | Silver Alloy |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 324 Ohms |
| 線圈功率: | 1.8 W |
| Email: | [email protected] |
