購買 8870180000與BYCHPS
購買即有保證

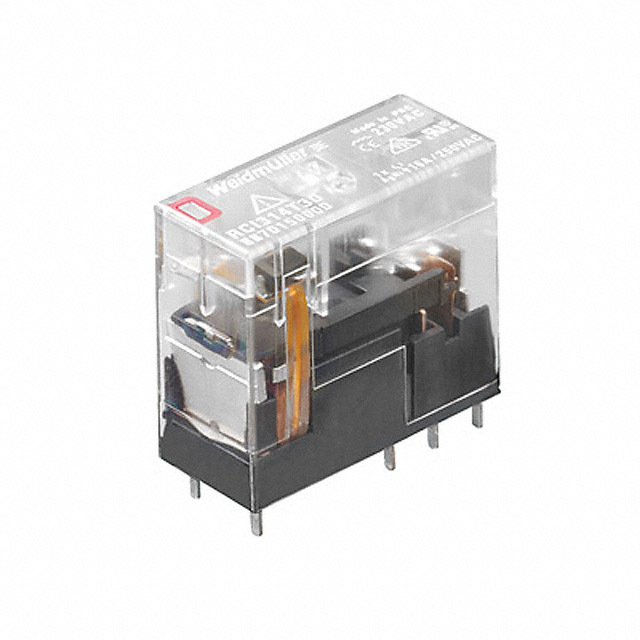

8870180000
- 型號:
- 8870180000
- 製造商:
- Weidmuller
- 描述:
- RELAY GEN PURPOSE DPDT 8A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14807 Pieces
- 數據表:
- 8870180000.pdf
簡單介紹
BYCHIPS是 8870180000的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的8870180000購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 16.8 VDC |
|---|---|
| 關閉電壓（最小）: | 2.4 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 250VAC - Max |
| 系列: | RCI |
| 發布時間: | 2ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 工作溫度: | -40°C ~ 70°C |
| 操作時間: | 7ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 9 Weeks |
| 製造商零件編號: | 8870180000 |
| 特徵: | Diode, LED Indicator |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE DPDT 8A 24V |
| 觸點額定值（電流）: | 8A |
| 觸點材料: | Silver Nickel (AgNi) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1.44 kOhms |
| 線圈功率: | 400 mW |
| 線圈電流: | 16.7mA |
| Email: | [email protected] |
