購買 8690060000與BYCHPS
購買即有保證

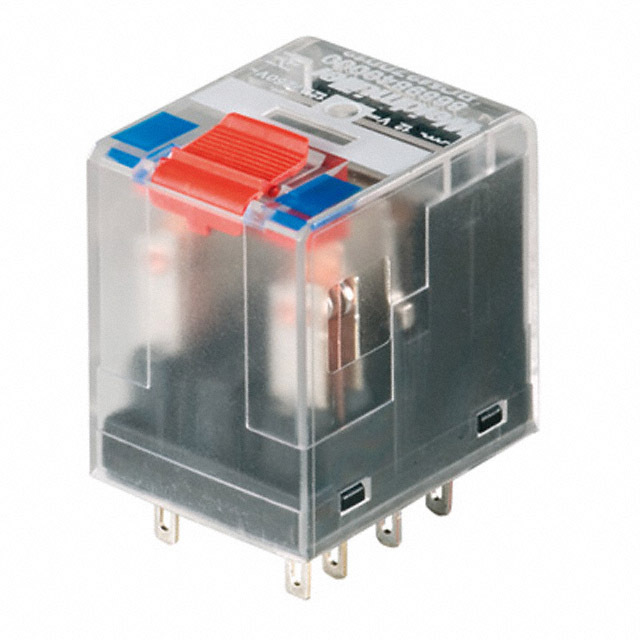

8690060000
- 型號:
- 8690060000
- 製造商:
- Weidmuller
- 描述:
- RELAY GEN PURPOSE 3PDT 10A 48V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13914 Pieces
- 數據表:
- 8690060000.pdf
簡單介紹
BYCHIPS是 8690060000的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的8690060000購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 36 VDC |
|---|---|
| 關閉電壓（最小）: | 4.8 VDC |
| 端接類型: | Plug In, Quick Connect - 0.110" (2.8mm) |
| 切換電壓: | 400VAC - Max |
| 系列: | RCM |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 工作溫度: | -40°C ~ 70°C |
| 操作時間: | 15ms |
| 安裝類型: | Socketable |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 7 Weeks |
| 製造商零件編號: | 8690060000 |
| 特徵: | Test Button |
| 展開說明: | General Purpose Relay 3PDT (3 Form C) 48VDC Coil Socketable |
| 描述: | RELAY GEN PURPOSE 3PDT 10A 48V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | Silver Nickel (AgNi) |
| 聯繫表: | 3PDT (3 Form C) |
| 線圈電壓: | 48VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 3.07 kOhms |
| 線圈功率: | 750 mW |
| 線圈電流: | 15.6mA |
| Email: | [email protected] |
