購買 8001-05-111與BYCHPS
購買即有保證

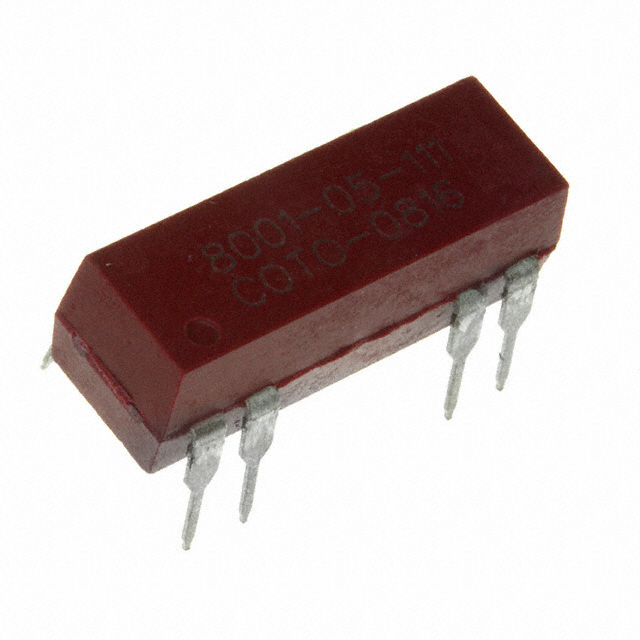

8001-05-111
- 型號:
- 8001-05-111
- 製造商:
- Coto Technology
- 描述:
- RELAY REED SPST 500MA 5V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13444 Pieces
- 數據表:
- 8001-05-111.pdf
簡單介紹
BYCHIPS是 8001-05-111的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的8001-05-111購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 3.8 VDC |
|---|---|
| 關閉電壓（最小）: | 0.5 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 200VAC, 200VDC - Max |
| 系列: | 8000 |
| 發布時間: | 1ms |
| 繼電器類型: | Reed |
| 封装: | Tube |
| 其他名稱: | 306-1243 8001-05-111-ND Q2042717 |
| 工作溫度: | -20°C ~ 85°C |
| 操作時間: | 0.5ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | 8001-05-111 |
| 特徵: | Diode, Electrostatic Shield |
| 展開說明: | Reed Relay SPST-NO (1 Form A) Through Hole |
| 描述: | RELAY REED SPST 500MA 5V |
| 觸點額定值（電流）: | 500mA |
| 觸點材料: | - |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 500 Ohms |
| 線圈功率: | - |
| 線圈電流: | 10mA |
| Email: | [email protected] |
