購買 760308111與BYCHPS
購買即有保證

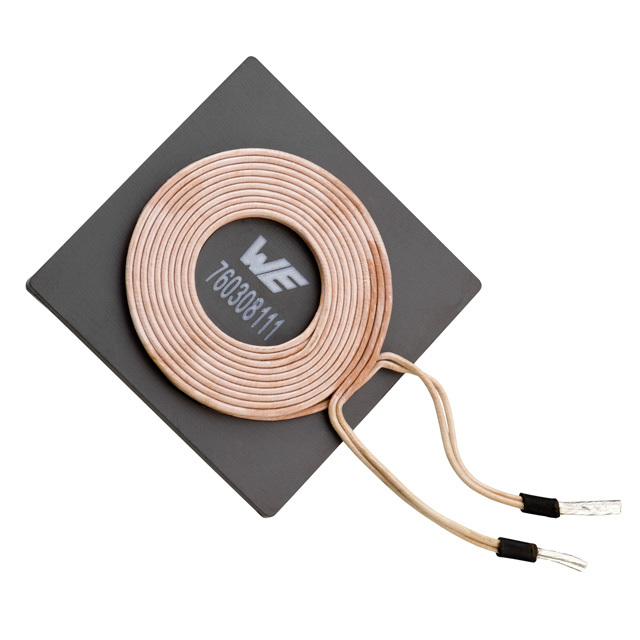

760308111
- 型號:
- 760308111
- 描述:
- TX 1 COIL 1 LAYER 6.3UH 13A
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14504 Pieces
- 數據表:
- 760308111.pdf
簡單介紹
BYCHIPS是 760308111的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的760308111購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | 1 Coil, 1 Layer |
|---|---|
| 公差: | ±10% |
| 尺寸/尺寸: | 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm) |
| 系列: | WE-WPCC |
| Q因子@頻率: | 80 @ 125kHz |
| 其他名稱: | 732-4461 |
| 工作溫度: | -20°C ~ 105°C |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | 760308111 |
| 電感: | 6.3µH |
| 功能: | Transmitter |
| 頻率 - 自諧振: | 20MHz |
| 展開說明: | 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 24 mOhm Max |
| 描述: | TX 1 COIL 1 LAYER 6.3UH 13A |
| 直流電阻（DCR）: | 24 mOhm Max |
| 目前評級: | 13A |
| 電流 - 飽和: | 16A |
| Email: | [email protected] |
