購買 74489440027與BYCHPS
購買即有保證
74489440027
- 型號:
- 74489440027
- 描述:
- INDUCT ARRAY 2 COIL 2.7UH SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12618 Pieces
- 數據表:
- 74489440027.pdf
簡單介紹
BYCHIPS是 74489440027的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的74489440027購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 公差: | ±30% |
|---|---|
| 測試電感 - 串聯連接: | 10.8µH |
| 尺寸/尺寸: | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| 屏蔽: | Shielded |
| 系列: | WE-TDC |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 732-3708-2 |
| 工作溫度: | -40°C ~ 125°C |
| 線圈的數目: | 2 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | 74489440027 |
| 電感 - 並行連接: | 2.7µH |
| 高度: | 0.150" (3.80mm) |
| 展開說明: | Shielded Coil Inductor Array Inductance - Connected in Series Inductance - Connected in Parallel 40 mOhm Max DC Resistance (DCR) - Parallel Nonstandard |
| 描述: | INDUCT ARRAY 2 COIL 2.7UH SMD |
| 直流電阻（DCR） - 系列: | - |
| 直流電阻（DCR） - 並聯: | 40 mOhm Max |
| 當前飽和度 - 系列: | 2.55A |
| 當前飽和度 - 平行: | 5.1A |
| 電流額定值 - 系列: | 1.25A |
| 電流額定值 - 並聯: | 2.5A |
| Email: | [email protected] |
74489440027的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |

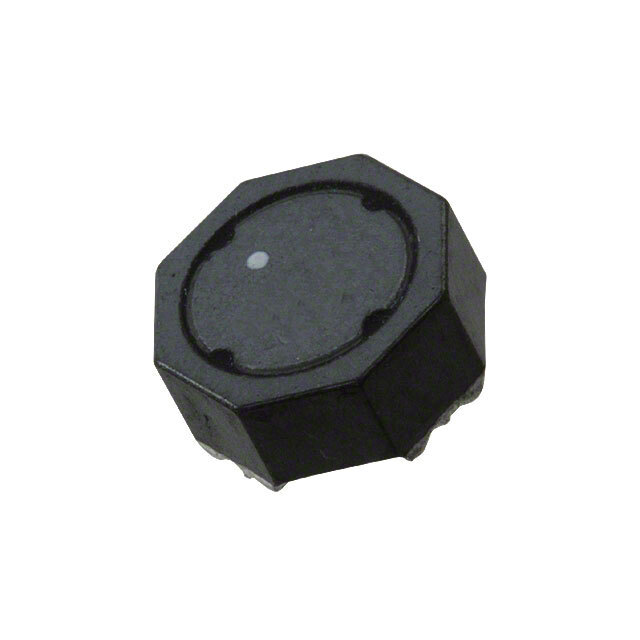

74489440036 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 3.6UH SMD | 在線詢價 |
 |
74489440068 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 6.8UH SMD | 在線詢價 |
|
74489440150 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 15UH SMD | 在線詢價 |
|
74489440012 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 1.2UH SMD | 在線詢價 |
|
74489440018 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 1.8UH SMD | 在線詢價 |
|
74489440180 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 18UH SMD | 在線詢價 |
|
74489440047 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 4.7UH SMD | 在線詢價 |
|
744894400082 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 820NH SMD | 在線詢價 |
|
744894400039 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 390NH SMD | 在線詢價 |
|
74489440220 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 22UH SMD | 在線詢價 |
|
74489440120 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 12UH SMD | 在線詢價 |
|
74489440100 | Wurth Electronics Inc. | INDUCT ARRAY 2 COIL 10UH SMD | 在線詢價 |
