購買 7448052502與BYCHPS
購買即有保證

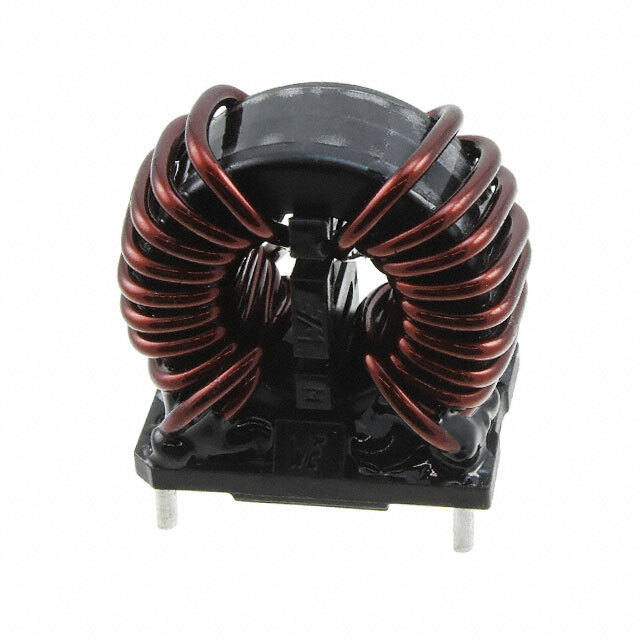

7448052502
- 型號:
- 7448052502
- 描述:
- CMC 2.5MH 25A 2LN TH
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17202 Pieces
- 數據表:
- 7448052502.pdf
簡單介紹
BYCHIPS是 7448052502的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的7448052502購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | - |
|---|---|
| 額定電壓 - AC: | 250V |
| 尺寸/尺寸: | 1.417" L x 0.906" W (36.00mm x 23.00mm) |
| 系列: | WE-CMBNC |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Vertical, 4 PC Pin |
| 其他名稱: | 732-5600 |
| 工作溫度: | -40°C ~ 125°C |
| 行數: | 2 |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 19 Weeks |
| 製造商零件編號: | 7448052502 |
| 電感@頻率: | 2.5mH @ 10kHz |
| 頻率對應阻抗: | - |
| 高度（最大）: | 1.417" (36.00mm) |
| 過濾器類型: | Power Line |
| 特徵: | - |
| 展開說明: | 2.5mH @ 10kHz 2 Line Common Mode Choke Through Hole 25A DCR 2.2 mOhm |
| 描述: | CMC 2.5MH 25A 2LN TH |
| 直流電阻（DCR）（最大值）: | 2.2 mOhm |
| 卡厚度（mm）: | 25A |
| 認證: | - |
| Email: | [email protected] |
