購買 744774222與BYCHPS
購買即有保證

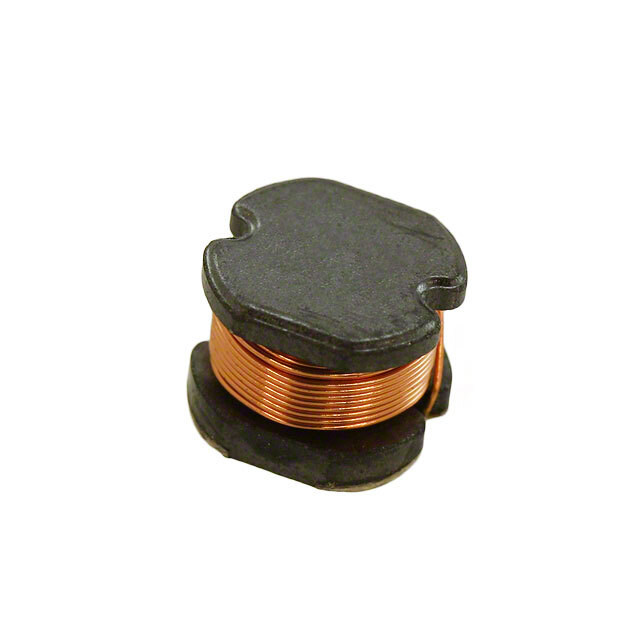

744774222
- 型號:
- 744774222
- 描述:
- FIXED IND 220UH 420MA 1.57 OHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18422 Pieces
- 數據表:
- 744774222.pdf
簡單介紹
BYCHIPS是 744774222的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的744774222購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±10% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| 屏蔽: | Unshielded |
| 系列: | WE-PD2 |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 732-4153-2 |
| 工作溫度: | -40°C ~ 125°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Ferrite |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | 744774222 |
| 電感: | 220µH |
| 高度 - 座高（最大）: | 0.191" (4.85mm) |
| 頻率 - 測試: | 10kHz |
| 頻率 - 自諧振: | 5MHz |
| 展開說明: | 220µH Unshielded Wirewound Inductor 420mA 1.57 Ohm Max Nonstandard |
| 描述: | FIXED IND 220UH 420MA 1.57 OHM |
| 直流電阻（DCR）: | 1.57 Ohm Max |
| 目前評級: | 420mA |
| 電流 - 飽和: | 470mA |
| Email: | [email protected] |
