購買 744772390與BYCHPS
購買即有保證

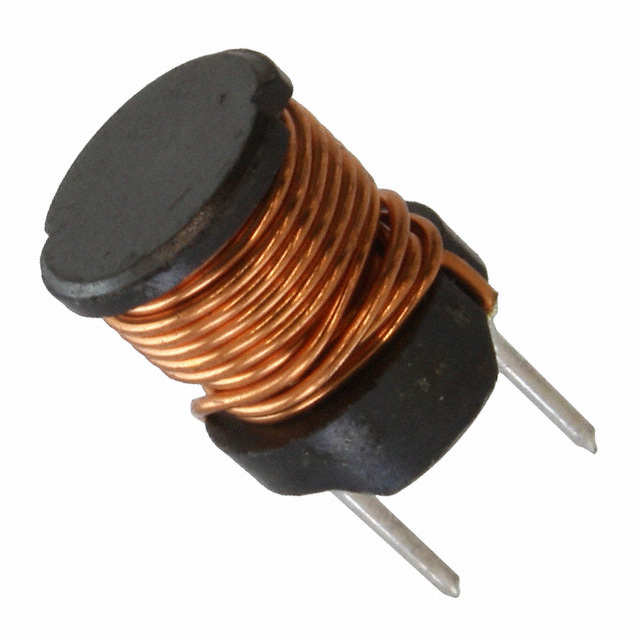

744772390
- 型號:
- 744772390
- 描述:
- FIXED IND 39UH 2.5A 90 MOHM TH
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16969 Pieces
- 數據表:
- 744772390.pdf
簡單介紹
BYCHIPS是 744772390的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的744772390購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±10% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.307" Dia (7.80mm) |
| 屏蔽: | Unshielded |
| 系列: | WE-TI |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tray |
| 封裝/箱體: | Radial |
| 其他名稱: | 732-3768 |
| 工作溫度: | -40°C ~ 125°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Ferrite |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | 744772390 |
| 電感: | 39µH |
| 高度 - 座高（最大）: | 0.394" (10.00mm) |
| 頻率 - 測試: | 1kHz |
| 頻率 - 自諧振: | 9.8MHz |
| 展開說明: | 39µH Unshielded Wirewound Inductor 2.5A 90 mOhm Max Radial |
| 描述: | FIXED IND 39UH 2.5A 90 MOHM TH |
| 直流電阻（DCR）: | 90 mOhm Max |
| 目前評級: | 2.5A |
| 電流 - 飽和: | 2.5A |
| Email: | [email protected] |
