購買 744031004與BYCHPS
購買即有保證

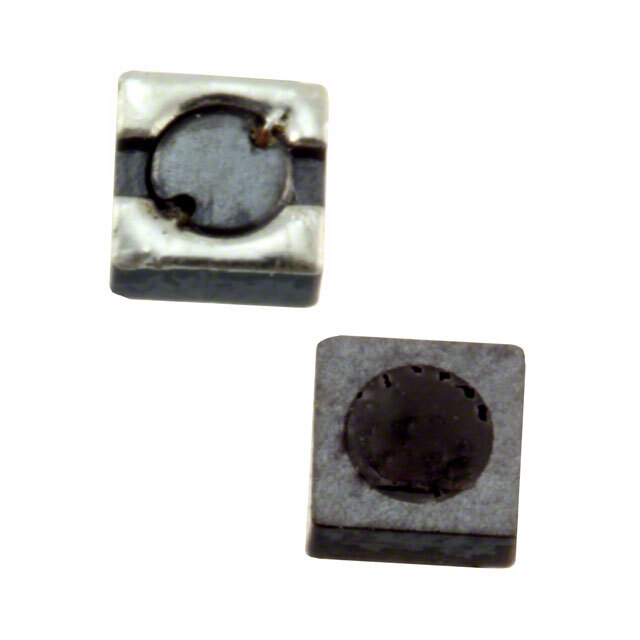

744031004
- 型號:
- 744031004
- 描述:
- FIXED IND 4.7UH 1.2A 105 MOHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14351 Pieces
- 數據表:
- 744031004.pdf
簡單介紹
BYCHIPS是 744031004的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的744031004購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±30% |
| 供應商設備封裝: | 3816 |
| 尺寸/尺寸: | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| 屏蔽: | Shielded |
| 系列: | WE-TPC |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 732-1008-2 |
| 工作溫度: | -40°C ~ 125°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Ferrite |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | 744031004 |
| 電感: | 4.7µH |
| 高度 - 座高（最大）: | 0.071" (1.80mm) |
| 頻率 - 測試: | 100kHz |
| 頻率 - 自諧振: | 75MHz |
| 展開說明: | 4.7µH Shielded Wirewound Inductor 1.2A 105 mOhm Max Nonstandard |
| 描述: | FIXED IND 4.7UH 1.2A 105 MOHM |
| 直流電阻（DCR）: | 105 mOhm Max |
| 目前評級: | 1.2A |
| 電流 - 飽和: | 900mA |
| Email: | [email protected] |
744031004的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
744031001 | Wurth Electronics Inc. | FIXED IND 1.5UH 1.75A 47 MOHM | 在線詢價 |
|
744031002 | Wurth Electronics Inc. | FIXED IND 2.5UH 1.45A 58 MOHM | 在線詢價 |
|
744031003 | Wurth Electronics Inc. | FIXED IND 3.6UH 1.38A 85 MOHM | 在線詢價 |
|
744031150 | Wurth Electronics Inc. | FIXED IND 15UH 620MA 285 MOHM | 在線詢價 |
|
744031006 | Wurth Electronics Inc. | FIXED IND 6.8UH 850MA 156 MOHM | 在線詢價 |
|
7440310047 | Wurth Electronics Inc. | FIXED IND 470NH 3A 22 MOHM SMD | 在線詢價 |
|
744031330 | Wurth Electronics Inc. | FIXED IND 33UH 420MA 660 MOHM | 在線詢價 |
|
744031101 | Wurth Electronics Inc. | FIXED IND 100UH 250MA 2.4 OHM | 在線詢價 |
|
744031010 | Wurth Electronics Inc. | FIXED IND 1UH 2A 37 MOHM SMD | 在線詢價 |
|
744031220 | Wurth Electronics Inc. | FIXED IND 22UH 510MA 450 MOHM | 在線詢價 |
|
744031680 | Wurth Electronics Inc. | FIXED IND 68UH 320MA 1.45 OHM | 在線詢價 |
