購買 54-786-014與BYCHPS
購買即有保證
54-786-014
- 型號:
- 54-786-014
- 描述:

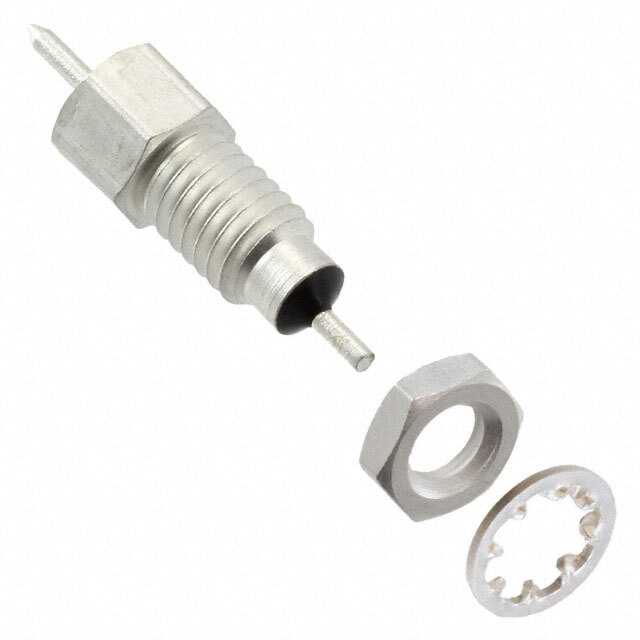

- CAP FEEDTHRU 1UF 50V AXIAL
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 12237 Pieces
- 數據表:
- 54-786-014.pdf
簡單介紹
BYCHIPS是 54-786-014的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的54-786-014購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | 50V |
|---|---|
| 公差: | -20%, +80% |
| 螺紋尺寸: | 10-32 |
| 溫度係數: | - |
| 尺寸/尺寸: | 0.218" Dia x 0.500" L (5.54mm x 12.70mm) |
| 系列: | - |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Axial, Bushing |
| 其他名稱: | 1171-1161 |
| 工作溫度: | -55°C ~ 125°C |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | 54-786-014 |
| 插入損耗: | 70dB @ 100MHz |
| 高度（最大）: | - |
| 展開說明: | 1µF Feed Through Capacitor 50V 10A 10 mOhm Axial, Bushing |
| 描述: | CAP FEEDTHRU 1UF 50V AXIAL |
| 直流電阻（DCR）（最大值）: | 10 mOhm |
| 當前: | 10A |
| 電容: | 1µF |
| Email: | [email protected] |
