購買 5-1618388-8與BYCHPS
購買即有保證

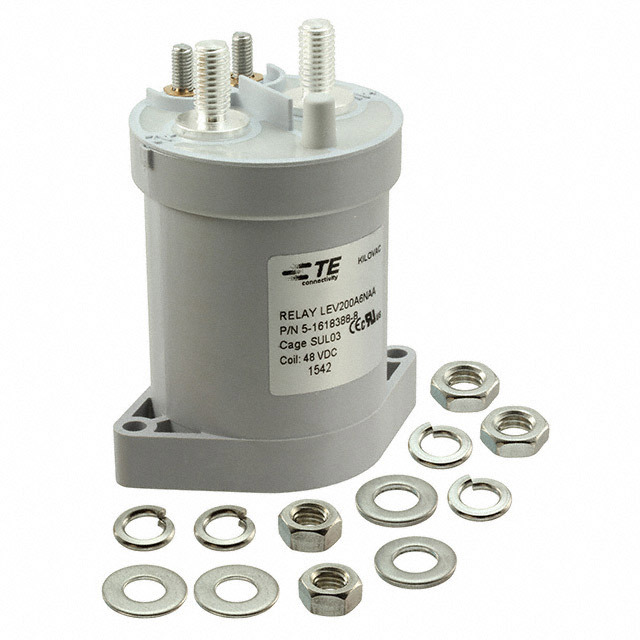

5-1618388-8
- 型號:
- 5-1618388-8
- 描述:
- RELAY CONTACTOR SPST 500A 48V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17973 Pieces
- 數據表:
- 5-1618388-8.pdf
簡單介紹
BYCHIPS是 5-1618388-8的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的5-1618388-8購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 38 VDC |
|---|---|
| 關閉電壓（最小）: | 7 VDC |
| 端接類型: | Stud |
| 切換電壓: | 900VDC - Max |
| 系列: | LEV200, KILOVAC |
| 發布時間: | 12ms |
| 繼電器類型: | Contactor |
| 封装: | Bulk |
| 其他名稱: | 5-1618388-8-ND 516183888 A122275 LEV200A6NAA |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 25ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | 5-1618388-8 |
| 特徵: | Sealed - Hermetically |
| 展開說明: | Contactor Relay SPST-NO (1 Form X) 48VDC Coil Chassis Mount |
| 描述: | RELAY CONTACTOR SPST 500A 48V |
| 觸點額定值（電流）: | 500A |
| 觸點材料: | - |
| 聯繫表: | SPST-NO (1 Form X) |
| 線圈電壓: | 48VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 145 Ohms |
| 線圈功率: | - |
| 線圈電流: | 331mA |
| Email: | [email protected] |
