購買 4702-005MLF與BYCHPS
購買即有保證

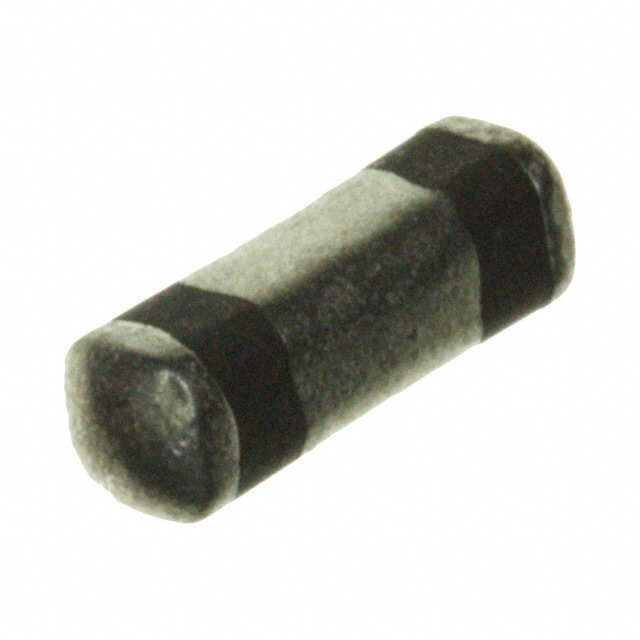

4702-005MLF
- 型號:
- 4702-005MLF
- 描述:
- CAP FEEDTHRU 4000PF 100V PILL
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19380 Pieces
- 數據表:
- 4702-005MLF.pdf
簡單介紹
BYCHIPS是 4702-005MLF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的4702-005MLF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | 100V |
|---|---|
| 公差: | -20%, +80% |
| 螺紋尺寸: | - |
| 溫度係數: | - |
| 尺寸/尺寸: | 0.315" L x 0.090" W (8.00mm x 2.29mm) |
| 系列: | 4702 |
| 評級: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Pill, Square |
| 其他名稱: | 410-1202-2 4702-005LF 4702005MLF |
| 工作溫度: | -55°C ~ 125°C |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 4 Weeks |
| 製造商零件編號: | 4702-005MLF |
| 插入損耗: | 30dB @ 100MHz |
| 高度（最大）: | 0.095" (2.42mm) |
| 展開說明: | 4000pF Feed Through Capacitor 100V 20A Pill, Square |
| 描述: | CAP FEEDTHRU 4000PF 100V PILL |
| 直流電阻（DCR）（最大值）: | - |
| 當前: | 20A |
| 電容: | 4000pF |
| Email: | [email protected] |
