購買 4-1393809-4與BYCHPS
購買即有保證

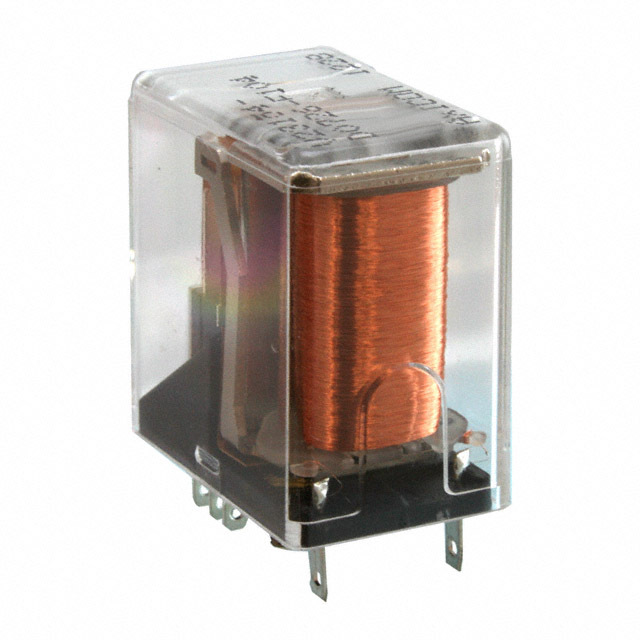

4-1393809-4
- 型號:
- 4-1393809-4
- 描述:
- RELAY GEN PURPOSE DPDT 5A 48V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17594 Pieces
- 數據表:
- 4-1393809-4.pdf
簡單介紹
BYCHIPS是 4-1393809-4的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的4-1393809-4購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 30 VDC |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Plug In |
| 切換電壓: | 125VAC, 150VDC - Max |
| 系列: | V23154, AXICOM |
| 發布時間: | 3ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 4-1393809-4-ND 413938094 PB1611 V23154D 726F104 V23154D 726F104-ND V23154D726F104 |
| 工作溫度: | -40°C ~ 70°C |
| 操作時間: | 7.5ms |
| 安裝類型: | Socketable |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | 4-1393809-4 |
| 特徵: | - |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 48VDC Coil Socketable |
| 描述: | RELAY GEN PURPOSE DPDT 5A 48V |
| 觸點額定值（電流）: | 5A |
| 觸點材料: | Silver (Ag) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 48VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 3.2 kOhms |
| 線圈功率: | 720 mW |
| 線圈電流: | 15mA |
| Email: | [email protected] |
