購買 36502AR82JTDG與BYCHPS
購買即有保證

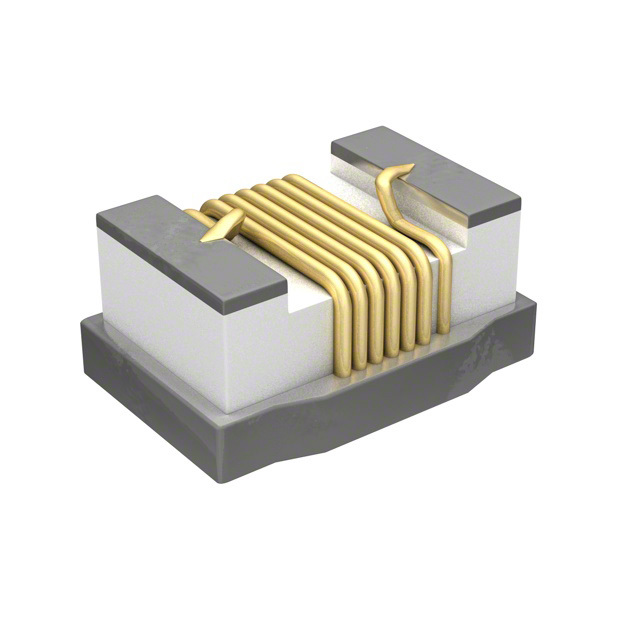

36502AR82JTDG
- 型號:
- 36502AR82JTDG
- 描述:
- FIXED IND 820NH 180MA 2.35 OHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17315 Pieces
簡單介紹
BYCHIPS是 36502AR82JTDG的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的36502AR82JTDG購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±5% |
| 供應商設備封裝: | 0907 (2317 Metric) |
| 尺寸/尺寸: | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| 屏蔽: | Unshielded |
| 系列: | 3650, Sigma Inductors |
| 評級: | - |
| Q因子@頻率: | 23 @ 50MHz |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 6-1624113-6 616241136 A103769TR |
| 工作溫度: | -40°C ~ 125°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | - |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | 36502AR82JTDG |
| 電感: | 820nH |
| 高度 - 座高（最大）: | 0.060" (1.52mm) |
| 頻率 - 測試: | 250MHz |
| 頻率 - 自諧振: | 200MHz |
| 展開說明: | 820nH Unshielded Wirewound Inductor 180mA 2.35 Ohm Max Nonstandard |
| 描述: | FIXED IND 820NH 180MA 2.35 OHM |
| 直流電阻（DCR）: | 2.35 Ohm Max |
| 目前評級: | 180mA |
| 電流 - 飽和: | - |
| Email: | [email protected] |
