購買 3-1617004-3與BYCHPS
購買即有保證

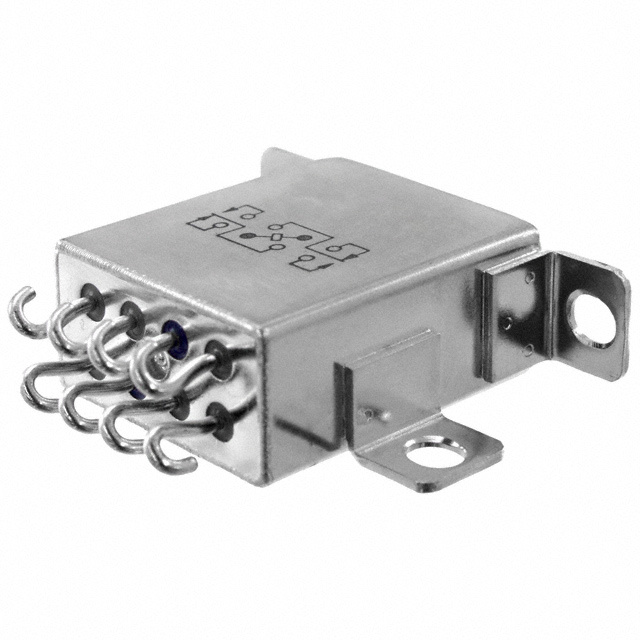

3-1617004-3
- 型號:
- 3-1617004-3
- 描述:
- RELAY GEN PURPOSE DPDT 10A 26.5V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 18238 Pieces
- 數據表:
- 3-1617004-3.pdf
簡單介紹
BYCHIPS是 3-1617004-3的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的3-1617004-3購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 13 VDC |
|---|---|
| 關閉電壓（最小）: | 1.8 VDC |
| 端接類型: | Solder Hook |
| 切換電壓: | 28VDC - Max |
| 系列: | 07, CII |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 316170043 A104698 |
| 工作溫度: | -65°C ~ 125°C |
| 操作時間: | 10ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 27 Weeks |
| 製造商零件編號: | 3-1617004-3 |
| 特徵: | Sealed - Hermetically |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 26.5VDC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE DPDT 10A 26.5V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 26.5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 300 Ohms |
| 線圈功率: | - |
| 線圈電流: | 88.3mA |
| Email: | [email protected] |
