購買 3-1393303-4與BYCHPS
購買即有保證
3-1393303-4
- 型號:
- 3-1393303-4
- 描述:

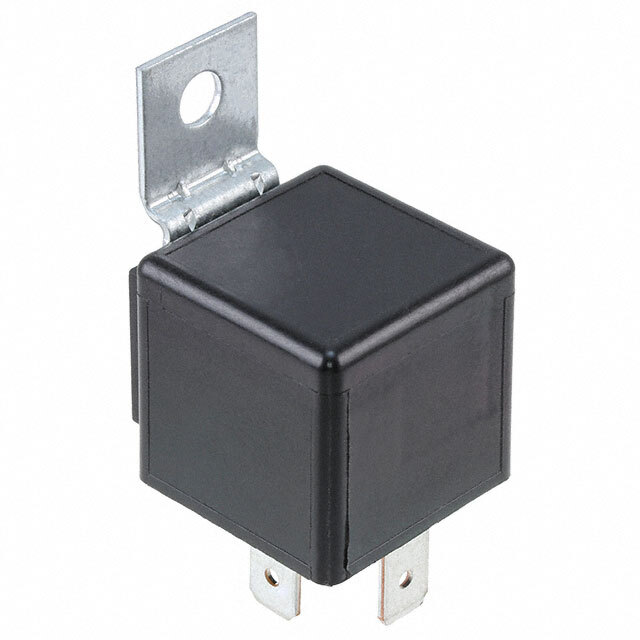

- RELAY AUTOMOTIVE SPST-NO 60A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17765 Pieces
- 數據表:
- 3-1393303-4.pdf
簡單介紹
BYCHIPS是 3-1393303-4的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的3-1393303-4購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 7.2 VDC |
|---|---|
| 關閉電壓（最小）: | 1.6 VDC |
| 端接類型: | Plug In, Quick Connect - 0.250" (6.3mm) |
| 切換電壓: | 12VDC - Nom |
| 系列: | F4 |
| 發布時間: | 2ms |
| 繼電器類型: | Automotive |
| 封装: | Bulk |
| 其他名稱: | 3-1393303-4-ND A122266 V23134B1052C642 |
| 工作溫度: | -40°C ~ 125°C |
| 操作時間: | 7ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 27 Weeks |
| 製造商零件編號: | 3-1393303-4 |
| 特徵: | - |
| 展開說明: | Automotive Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount |
| 描述: | RELAY AUTOMOTIVE SPST-NO 60A 12V |
| 觸點額定值（電流）: | 60A |
| 觸點材料: | Silver Alloy |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 90 Ohms |
| 線圈功率: | 1.6 W |
| Email: | [email protected] |
