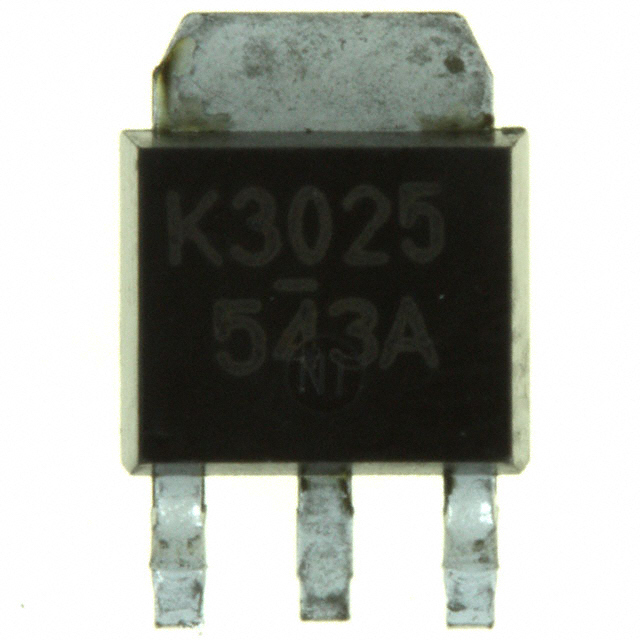

2SK302500L
- 型號:
- 2SK302500L
- 製造商:
- Panasonic
- 描述:
- MOSFET N-CH 60V 30A UG-2
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19492 Pieces
- 數據表:
- 2SK302500L.pdf
簡單介紹
BYCHIPS是 2SK302500L的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2SK302500L購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.5V @ 1mA |
|---|---|
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | U-DL |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 40 mOhm @ 15A, 10V |
| 功率耗散（最大）: | 1W (Ta), 25W (Tc) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | U-G2 |
| 其他名稱: | 2SK302500LTR 2SK3025U0L 2SK3025U0LTR 2SK3025U0LTR-ND |
| 工作溫度: | 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | 2SK302500L |
| 輸入電容（Ciss）（Max）@ Vds: | 1200pF @ 10V |
| 柵極電荷（Qg）（Max）@ Vgs: | - |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 60V 30A (Tc) 1W (Ta), 25W (Tc) Surface Mount U-DL |
| 漏極至源極電壓（Vdss）: | 60V |
| 描述: | MOSFET N-CH 60V 30A UG-2 |
| 電流 - 25°C連續排水（Id）: | 30A (Tc) |
