購買 2SA1943-O(Q)與BYCHPS
購買即有保證

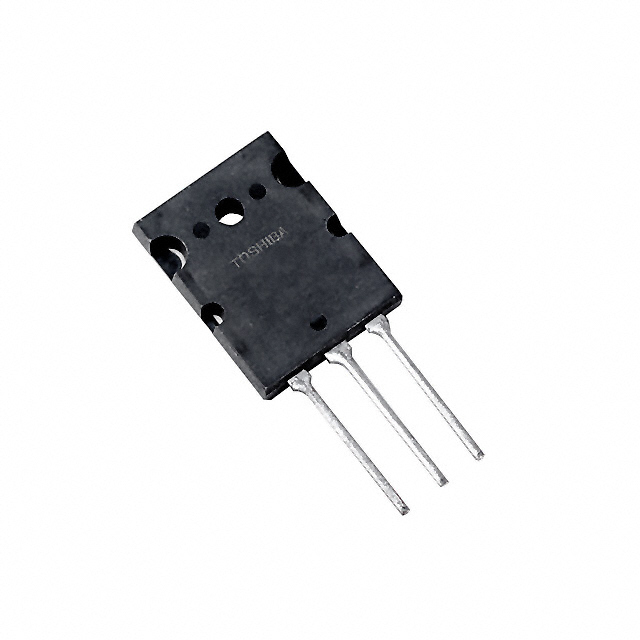

2SA1943-O(Q)
- 型號:
- 2SA1943-O(Q)
- 描述:
- TRANS PNP 230V 15A TO-3PL
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18629 Pieces
- 數據表:
- 2SA1943-O(Q).pdf
簡單介紹
BYCHIPS是 2SA1943-O(Q)的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2SA1943-O(Q)購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 230V |
|---|---|
| Vce飽和（最大）@ IB，IC: | 3V @ 800mA, 8A |
| 晶體管類型: | PNP |
| 供應商設備封裝: | TO-3P(L) |
| 系列: | - |
| 功率 - 最大: | 150W |
| 封装: | Tube |
| 封裝/箱體: | TO-3PL |
| 其他名稱: | 2SA1943-O (Q) 2SA1943-OQ 2SA1943OQ |
| 工作溫度: | 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | 2SA1943-O(Q) |
| 頻率 - 轉換: | 30MHz |
| 展開說明: | Bipolar (BJT) Transistor PNP 230V 15A 30MHz 150W Through Hole TO-3P(L) |
| 描述: | TRANS PNP 230V 15A TO-3PL |
| 直流電流增益（HFE）（最小值）@ IC，的Vce: | 80 @ 1A, 5V |
| 電流 - 集電極截止（最大）: | 5µA (ICBO) |
| 電流 - 集電極（Ic）（最大）: | 15A |
| Email: | [email protected] |
