購買 2942111與BYCHPS
購買即有保證

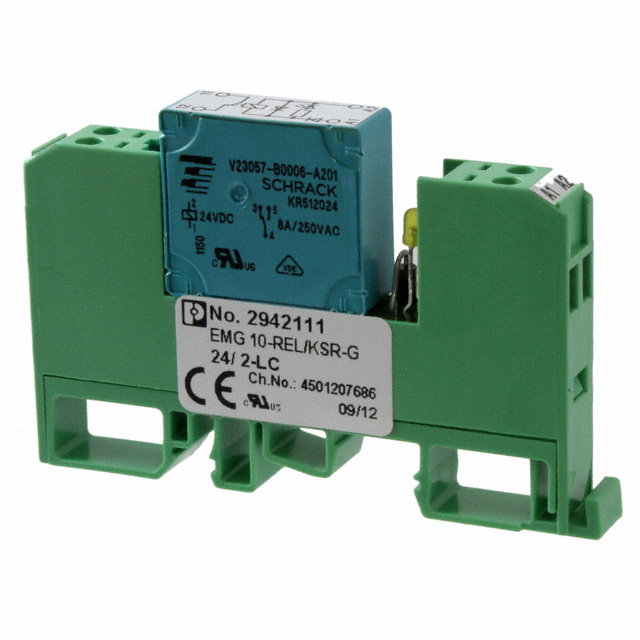

2942111
- 型號:
- 2942111
- 製造商:
- Phoenix Contact
- 描述:
- RELAY GEN PURPOSE SPST 6A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15110 Pieces
- 數據表:
- 2942111.pdf
簡單介紹
BYCHIPS是 2942111的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2942111購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | - |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Screw Terminal |
| 切換電壓: | 250VAC, 250VDC - Max |
| 系列: | - |
| 發布時間: | 11ms |
| 繼電器類型: | General Purpose with Socket |
| 封装: | Bulk |
| 其他名稱: | 277-5240 2942111-ND EMG10-REL/KSR-G24/2-LC EMG10-REL/KSR-G242LC |
| 工作溫度: | -20°C ~ 40°C |
| 操作時間: | 7ms |
| 安裝類型: | DIN Rail |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 3 Weeks |
| 製造商零件編號: | 2942111 |
| 特徵: | - |
| 展開說明: | General Purpose with Socket Relay SPST-NC (1 Form B) 24VDC Coil DIN Rail |
| 描述: | RELAY GEN PURPOSE SPST 6A 24V |
| 觸點額定值（電流）: | 6A |
| 觸點材料: | Silver Nickel (AgNi) |
| 聯繫表: | SPST-NC (1 Form B) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | - |
| 線圈功率: | - |
| 線圈電流: | 21mA |
| Email: | [email protected] |
