購買 2904951與BYCHPS
購買即有保證

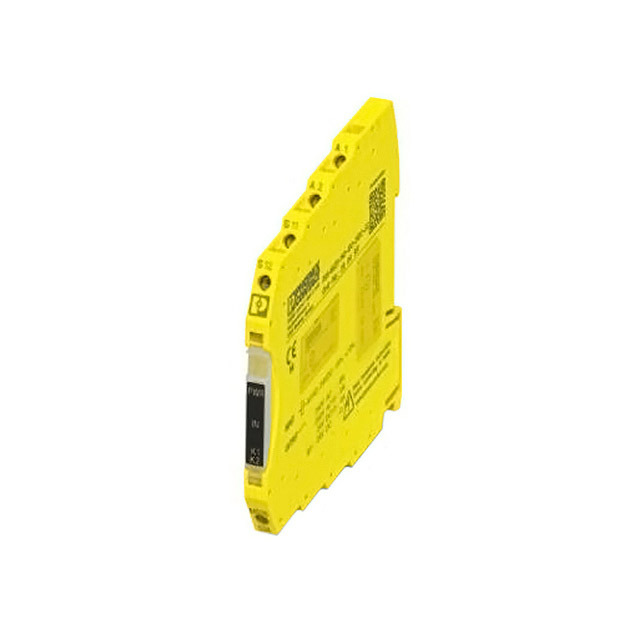

2904951
- 型號:
- 2904951
- 製造商:
- Phoenix Contact
- 描述:
- RELAY SAFETY SPST-NO 6A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13535 Pieces
- 數據表:
- 2904951.pdf
簡單介紹
BYCHIPS是 2904951的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2904951購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | - |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Screw Terminal |
| 切換電壓: | 250VAC, 250VDC - Max |
| 系列: | PSR |
| 發布時間: | 20ms |
| 繼電器類型: | Safety |
| 封装: | Bulk |
| 其他名稱: | 277-11733 PSR-MS25-1NO-1DO-24DC-SC |
| 工作溫度: | -40°C ~ 60°C |
| 操作時間: | 250ms |
| 安裝類型: | DIN Rail |
| 製造商零件編號: | 2904951 |
| 特徵: | LED |
| 展開說明: | Safety Relay SPST-NO (1 Form A) 24VDC Coil DIN Rail |
| 描述: | RELAY SAFETY SPST-NO 6A 24V |
| 觸點額定值（電流）: | 6A |
| 觸點材料: | Silver Tin Oxide (AgSnO) |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 24VDC |
| 線圈類型: | - |
| 線圈電阻: | - |
| 線圈功率: | - |
| 線圈電流: | 42mA |
| Email: | [email protected] |
