購買 25SVPD82M與BYCHPS
購買即有保證

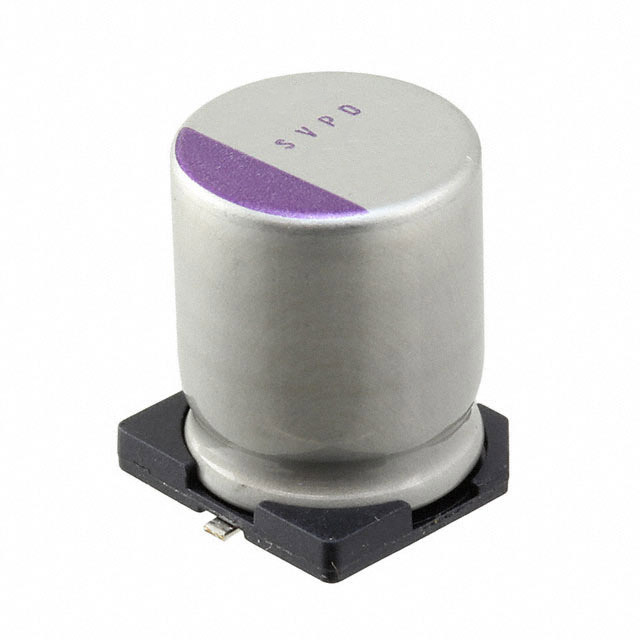

25SVPD82M
- 型號:
- 25SVPD82M
- 製造商:
- Panasonic
- 描述:
- CAP ALUM POLY 82UF 20% 25V SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19713 Pieces
- 數據表:
- 25SVPD82M.pdf
簡單介紹
BYCHIPS是 25SVPD82M的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的25SVPD82M購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓: | 25V |
|---|---|
| 類型: | Polymer |
| 公差: | ±20% |
| 表面貼裝佔地面積: | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| 尺寸/尺寸: | 0.394" Dia (10.00mm) |
| 系列: | OS-CON™, SVPD |
| 波紋電流 - 低頻: | 60.1mA @ 120Hz |
| 紋波電流 - 高頻: | 1.202A @ 100kHz |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Radial, Can - SMD |
| 其他名稱: | PCE5073TR |
| 工作溫度: | -55°C ~ 125°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 2A (4 Weeks) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | 25SVPD82M |
| 壽命@溫度。: | 2000 Hrs @ 125°C |
| 引線間距: | - |
| 阻抗: | - |
| 高度 - 座高（最大）: | 0.500" (12.70mm) |
| 展開說明: | 82µF ±20% 25V Aluminum Polymer Capacitor Radial, Can - SMD 28 mOhm 2000 Hrs @ 125°C |
| ESR（等效串聯電阻）: | 28 mOhm |
| 描述: | CAP ALUM POLY 82UF 20% 25V SMD |
| 電容: | 82µF |
| 應用: | General Purpose |
| Email: | [email protected] |
