購買 225P10591YD3與BYCHPS
購買即有保證

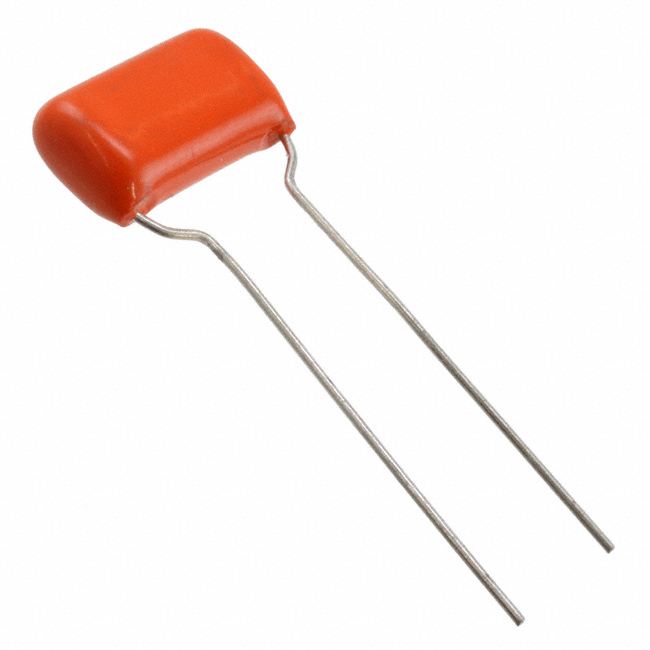

225P10591YD3
- 型號:
- 225P10591YD3
- 描述:
- CAP FILM 1UF 10% 100VDC RADIAL
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14245 Pieces
- 數據表:
- 225P10591YD3.pdf
簡單介紹
BYCHIPS是 225P10591YD3的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的225P10591YD3購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 100V |
|---|---|
| 額定電壓 - AC: | - |
| 公差: | ±10% |
| 終止: | PC Pins |
| 尺寸/尺寸: | 1.250" L x 0.720" W (31.80mm x 18.30mm) |
| 系列: | Orange Drop® 225P |
| 封装: | Bulk |
| 封裝/箱體: | Radial |
| 其他名稱: | 225P10591YD3-ND 338-4264 |
| 工作溫度: | -55°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | 225P10591YD3 |
| 引線間距: | 0.720" (18.30mm) |
| 高度 - 座高（最大）: | 0.980" (24.90mm) |
| 特徵: | - |
| 展開說明: | 1µF ±10% Film Capacitor 100V Polyester Radial |
| ESR（等效串聯電阻）: | - |
| 絕緣材料: | Polyester |
| 描述: | CAP FILM 1UF 10% 100VDC RADIAL |
| 電容: | 1µF |
| 應用: | DC Link, DC Filtering |
| Email: | [email protected] |
