購買 2-1414939-2與BYCHPS
購買即有保證

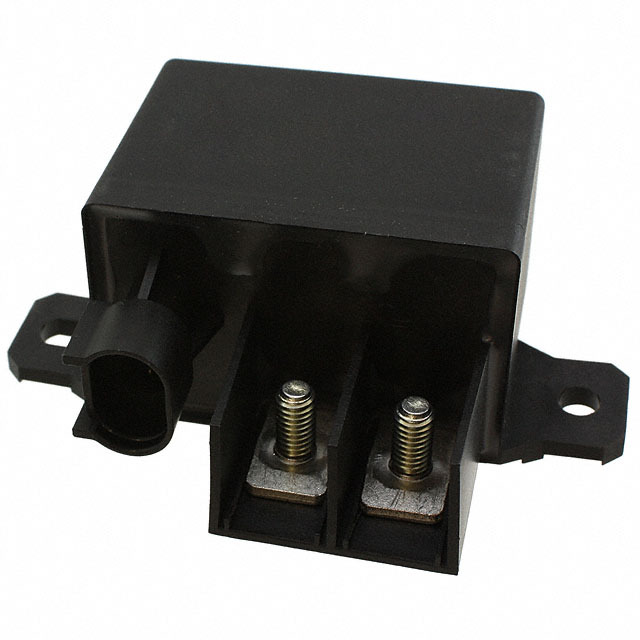

2-1414939-2
- 型號:
- 2-1414939-2
- 描述:
- RELAY AUTO SPST-NO 130A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19926 Pieces
- 數據表:
- 2-1414939-2.pdf
簡單介紹
BYCHIPS是 2-1414939-2的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的2-1414939-2購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 7.2 VDC |
|---|---|
| 關閉電壓（最小）: | 1.2 VDC |
| 端接類型: | Screw Terminal |
| 切換電壓: | 12VDC - Nom |
| 系列: | High Current Relay 150 |
| 發布時間: | 8ms |
| 繼電器類型: | Automotive |
| 封装: | Bulk |
| 其他名稱: | 2-1414939-2-ND 214149392 PB1785 PB1785-N V23132A2001B200-EV-USBX |
| 工作溫度: | -40°C ~ 125°C |
| 操作時間: | 25ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | 2-1414939-2 |
| 特徵: | IP67 |
| 展開說明: | Automotive Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount |
| 描述: | RELAY AUTO SPST-NO 130A 12V |
| 觸點額定值（電流）: | 130A |
| 觸點材料: | Silver Tin Oxide (AgSnO) |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 37 Ohms |
| 線圈功率: | 3.9 W |
| 線圈電流: | 324mA |
| Email: | [email protected] |
