購買 16R250GPR與BYCHPS
購買即有保證

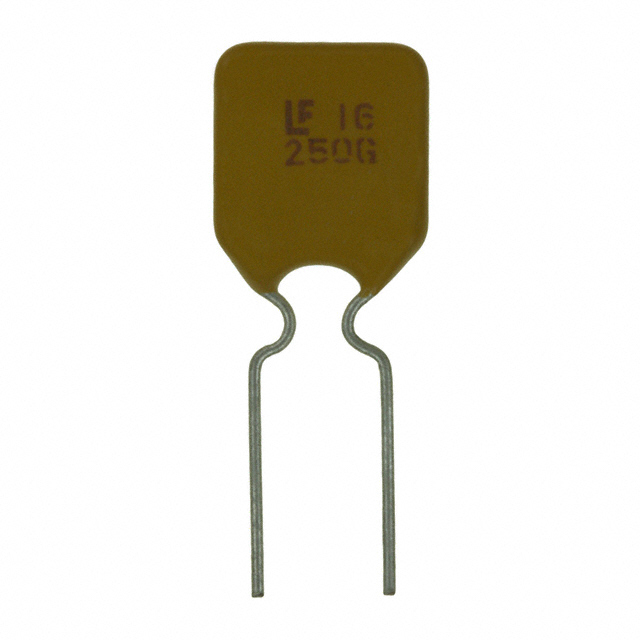

16R250GPR
- 型號:
- 16R250GPR
- 製造商:
- Littelfuse
- 描述:
- PTC RESETTABLE 16V 2.50A RADIAL
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13474 Pieces
- 數據表:
- 16R250GPR.pdf
簡單介紹
BYCHIPS是 16R250GPR的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的16R250GPR購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 16V |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 5s |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.350" L x 0.118" W (8.90mm x 3.00mm) |
| 系列: | POLY-FUSE®, 16R |
| 電阻 - 跳閘（R1）（最大）: | 53 mOhm |
| 電阻 - 初始（Ri）（最小值）: | 22 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | - |
| 封装: | Tape & Box (TB) |
| 封裝/箱體: | Radial, Disc |
| 其他名稱: | 16R250GPR-ND F5547TB |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 9 Weeks |
| 製造商零件編號: | 16R250GPR |
| 引線間距: | 0.201" (5.10mm) |
| 高度 - 座高（最大）: | 0.500" (12.80mm) |
| 展開說明: | PTC Resettable Fuse 16V Ih Through Hole Radial, Disc |
| 描述: | PTC RESETTABLE 16V 2.50A RADIAL |
| 電流 - 跳閘（It）: | 4.7A |
| 電流 - 最大: | 100A |
| 電流 - 維持（Ih）（最大值）: | 2.5A |
| 認證: | cURus, TUV |
| Email: | [email protected] |
