購買 0ZCC0075FF2C與BYCHPS
購買即有保證

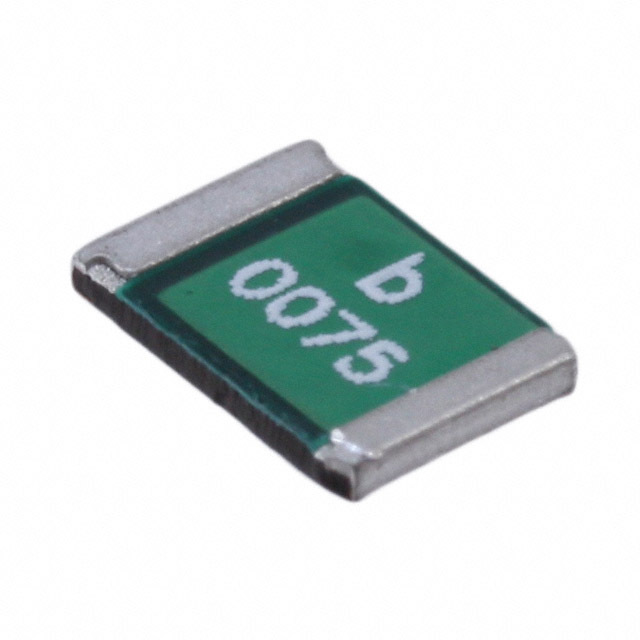

0ZCC0075FF2C
- 型號:
- 0ZCC0075FF2C
- 製造商:
- Bel Fuse, Inc.
- 描述:
- PTC RESETTABLE 16V 750MA 1812
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17087 Pieces
- 數據表:
- 0ZCC0075FF2C.pdf
簡單介紹
BYCHIPS是 0ZCC0075FF2C的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的0ZCC0075FF2C購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 16V |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 200ms |
| 厚度（最大）: | 0.035" (0.90mm) |
| 尺寸/尺寸: | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| 系列: | 0ZCC |
| 電阻 - 跳閘（R1）（最大）: | 450 mOhm |
| 電阻 - 初始（Ri）（最小值）: | 110 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 1812 (4532 Metric) |
| 其他名稱: | 507-1362-2 |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 2A (4 Weeks) |
| 製造商零件編號: | 0ZCC0075FF2C |
| 引線間距: | - |
| 高度 - 座高（最大）: | - |
| 展開說明: | PTC Resettable Fuse 16V Ih Surface Mount 1812 (4532 Metric) |
| 描述: | PTC RESETTABLE 16V 750MA 1812 |
| 電流 - 跳閘（It）: | 1.5A |
| 電流 - 最大: | 40A |
| 電流 - 維持（Ih）（最大值）: | 750mA |
| 認證: | cURus, TUV |
