購買 YQS5846PTF與BYCHPS
購買即有保證

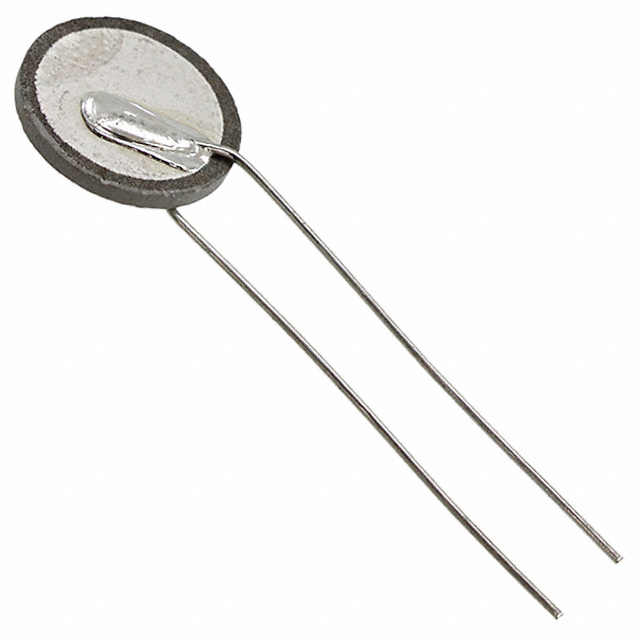

YQS5846PTF
- 型號:
- YQS5846PTF
- 描述:
- THERMISTOR PTC RESET FUSE +/-20%
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14078 Pieces
簡單介紹
BYCHIPS是 YQS5846PTF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的YQS5846PTF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 25V |
|---|---|
| 類型: | Ceramic |
| 跳閘時間: | - |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.551" Dia x 0.181" W (14.00mm x 4.60mm) |
| 系列: | PTF |
| 電阻 - 跳閘（R1）（最大）: | - |
| 電阻 - 初始（Ri）（最小值）: | - |
| 電阻 - 25°C（典型值）: | 3 Ohm |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Disc |
| 其他名稱: | 235-1277 YQS5846PTF-ND |
| 工作溫度: | 10°C ~ 55°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | YQS5846PTF |
| 引線間距: | 0.197" (5.00mm) |
| 高度 - 座高（最大）: | 0.630" (16.00mm) |
| 展開說明: | PTC Resettable Fuse 25V Ih Through Hole Radial, Disc |
| 描述: | THERMISTOR PTC RESET FUSE +/-20% |
| 電流 - 跳閘（It）: | 740mA |
| 電流 - 最大: | - |
| 電流 - 維持（Ih）（最大值）: | 370mA |
| 認證: | - |
| Email: | [email protected] |
