購買 TPCA8016-H(TE12LQM與BYCHPS
購買即有保證

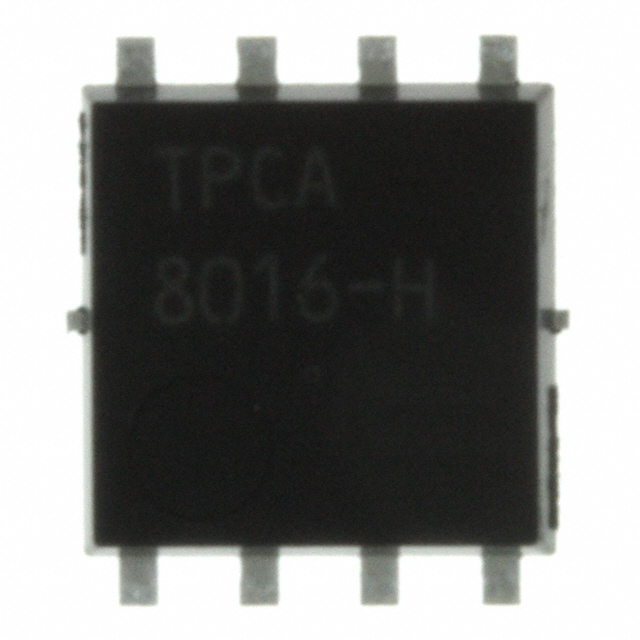

TPCA8016-H(TE12LQM
- 型號:
- TPCA8016-H(TE12LQM
- 描述:
- MOSFET N-CH 60V 25A 8-SOPA
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12840 Pieces
簡單介紹
BYCHIPS是 TPCA8016-H(TE12LQM的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的TPCA8016-H(TE12LQM購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.3V @ 1mA |
|---|---|
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | 8-SOP Advance (5x5) |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 21 mOhm @ 13A, 10V |
| 功率耗散（最大）: | 1.6W (Ta), 45W (Tc) |
| 封装: | Original-Reel® |
| 封裝/箱體: | 8-PowerVDFN |
| 其他名稱: | TPCA8016HTE12LQDKR TPCA8016HTE12LQDKR-ND TPCA8016HTE12LQM TPCA8016HTE12LQMDKR |
| 工作溫度: | 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | TPCA8016-H(TE12LQM |
| 輸入電容（Ciss）（Max）@ Vds: | 1375pF @ 10V |
| 柵極電荷（Qg）（Max）@ Vgs: | 22nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 60V 25A (Ta) 1.6W (Ta), 45W (Tc) Surface Mount 8-SOP Advance (5x5) |
| 漏極至源極電壓（Vdss）: | 60V |
| 描述: | MOSFET N-CH 60V 25A 8-SOPA |
| 電流 - 25°C連續排水（Id）: | 25A (Ta) |
| Email: | [email protected] |
TPCA8016-H(TE12LQM的相似型號
