購買 STL62P3LLH6與BYCHPS
購買即有保證

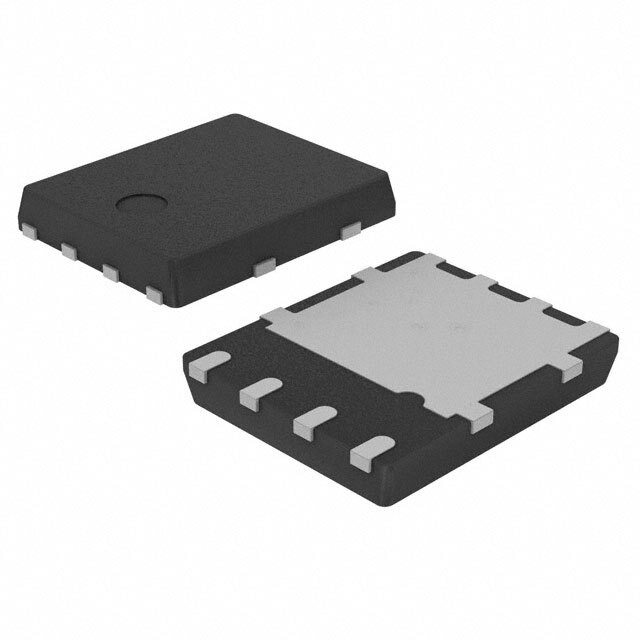

STL62P3LLH6
- 型號:
- STL62P3LLH6
- 製造商:
- ST
- 描述:
- MOSFET P-CH 30V 62A 8POWERFLAT
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15668 Pieces
- 數據表:
- STL62P3LLH6.pdf
簡單介紹
BYCHIPS是 STL62P3LLH6的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的STL62P3LLH6購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 1V @ 250µA (Min) |
|---|---|
| Vgs（最大）: | ±20V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | PowerFlat™ (5x6) |
| 系列: | STripFET™ H6 |
| RDS（ON）（最大值）@標識，柵極電壓: | 10.5 mOhm @ 7A, 10V |
| 功率耗散（最大）: | 100W (Tc) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 8-PowerSMD, Flat Leads |
| 其他名稱: | 497-15481-2 |
| 工作溫度: | 175°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | STL62P3LLH6 |
| 輸入電容（Ciss）（Max）@ Vds: | 3350pF @ 25V |
| 柵極電荷（Qg）（Max）@ Vgs: | 33nC @ 4.5V |
| FET型: | P-Channel |
| FET特點: | - |
| 展開說明: | P-Channel 30V 62A (Tc) 100W (Tc) Surface Mount PowerFlat™ (5x6) |
| 驅動電壓（最大Rds開，最小Rds開）: | 4.5V, 10V |
| 漏極至源極電壓（Vdss）: | 30V |
| 描述: | MOSFET P-CH 30V 62A 8POWERFLAT |
| 電流 - 25°C連續排水（Id）: | 62A (Tc) |
| Email: | [email protected] |
