購買 SSM6P47NU,LF(T與BYCHPS
購買即有保證

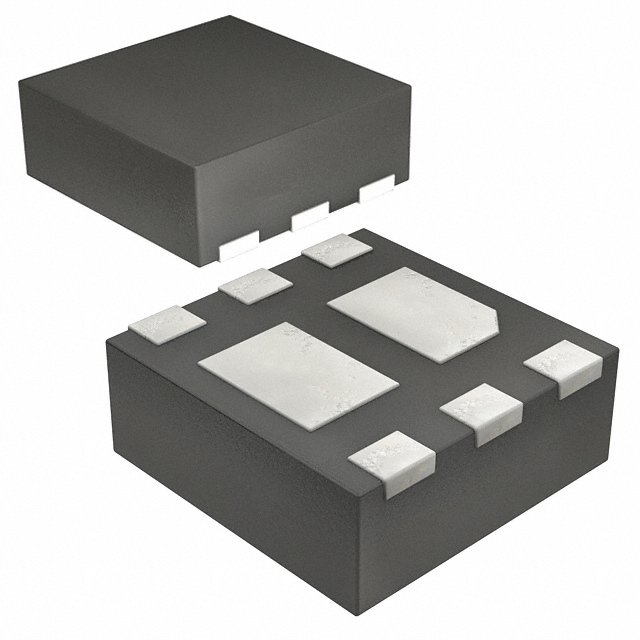

SSM6P47NU,LF(T
- 型號:
- SSM6P47NU,LF(T
- 描述:
- MOSFET 2P-CH 20V 4A 2-2Y1A
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12678 Pieces
簡單介紹
BYCHIPS是 SSM6P47NU,LF(T的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的SSM6P47NU,LF(T購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 1V @ 1mA |
|---|---|
| 供應商設備封裝: | 6-UDFN (2x2) |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 95 mOhm @ 1.5A, 4.5V |
| 功率 - 最大: | 1W |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 6-WDFN Exposed Pad |
| 其他名稱: | SSM6P47NU,LF SSM6P47NU,LF(B SSM6P47NULF SSM6P47NULF(TTR SSM6P47NULFTR SSM6P47NULFTR-ND |
| 工作溫度: | 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | SSM6P47NU,LF(T |
| 輸入電容（Ciss）（Max）@ Vds: | 290pF @ 10V |
| 柵極電荷（Qg）（Max）@ Vgs: | 4.6nC @ 4.5V |
| FET型: | 2 P-Channel (Dual) |
| FET特點: | Logic Level Gate |
| 展開說明: | Mosfet Array 2 P-Channel (Dual) 20V 4A 1W Surface Mount 6-UDFN (2x2) |
| 漏極至源極電壓（Vdss）: | 20V |
| 描述: | MOSFET 2P-CH 20V 4A 2-2Y1A |
| 電流 - 25°C連續排水（Id）: | 4A |
| Email: | [email protected] |
