購買 S89R5DAC1-12與BYCHPS
購買即有保證

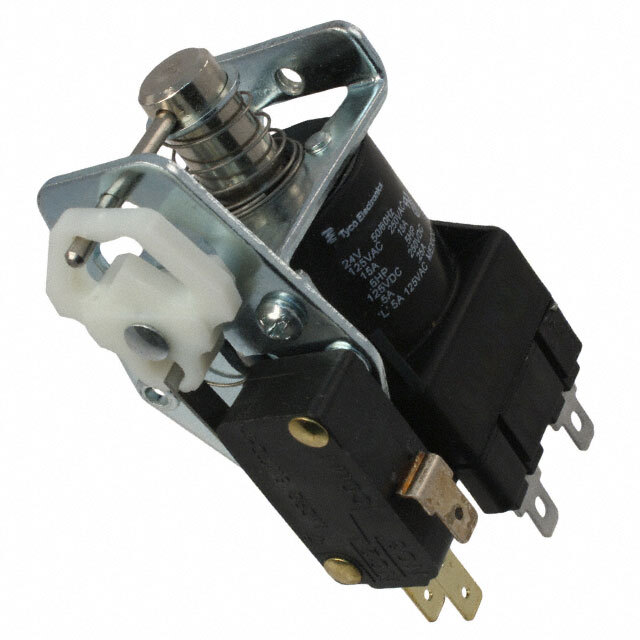

S89R5DAC1-12
- 型號:
- S89R5DAC1-12
- 描述:
- RELAY IMPULSE SPDT 15A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17869 Pieces
- 數據表:
- S89R5DAC1-12.pdf
簡單介紹
BYCHIPS是 S89R5DAC1-12的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的S89R5DAC1-12購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 9 VDC |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Quick Connect - 0.187" (4.7mm) |
| 切換電壓: | 277VAC - Max |
| 系列: | S89R |
| 繼電器類型: | Impulse |
| 封装: | Bulk |
| 其他名稱: | 1423986-8 S89R5DAC112 |
| 工作溫度: | -10°C ~ 60°C |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | S89R5DAC1-12 |
| 特徵: | Insulation - Class B |
| 展開說明: | Impulse Relay SPDT (1 Form C) 12VDC Coil Chassis Mount |
| 描述: | RELAY IMPULSE SPDT 15A 12V |
| 觸點額定值（電流）: | 15A |
| 觸點材料: | - |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Latching, Single Coil |
| 線圈電阻: | 22.5 Ohms |
| 線圈功率: | 6.3 W |
| 線圈電流: | 533mA |
| Email: | [email protected] |
