購買 RV3C002UNT2CL與BYCHPS
購買即有保證

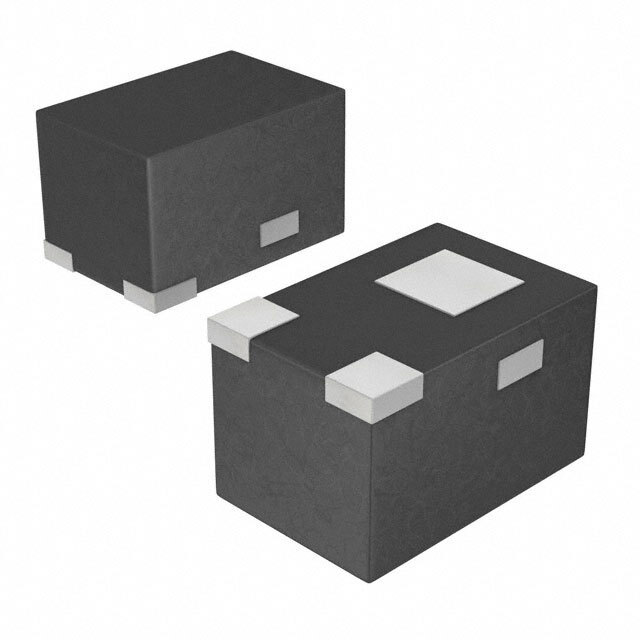

RV3C002UNT2CL
- 型號:
- RV3C002UNT2CL
- 描述:
- NCH 20V 150MA SM SIG MOSFET, VML
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13057 Pieces
簡單介紹
BYCHIPS是 RV3C002UNT2CL的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的RV3C002UNT2CL購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 1V @ 100µA |
|---|---|
| Vgs（最大）: | ±10V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | VML0604 |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 2 Ohm @ 150mA, 4.5V |
| 功率耗散（最大）: | 100mW (Ta) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 3-XFDFN |
| 其他名稱: | RV3C002UNT2CL TR RV3C002UNT2CL TR-ND RV3C002UNT2CLTR |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | RV3C002UNT2CL |
| 輸入電容（Ciss）（Max）@ Vds: | 12pF @ 10V |
| 柵極電荷（Qg）（Max）@ Vgs: | - |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 20V 150mA (Ta) 100mW (Ta) Surface Mount VML0604 |
| 驅動電壓（最大Rds開，最小Rds開）: | 1.5V, 4.5V |
| 漏極至源極電壓（Vdss）: | 20V |
| 描述: | NCH 20V 150MA SM SIG MOSFET, VML |
| 電流 - 25°C連續排水（Id）: | 150mA (Ta) |
| Email: | [email protected] |
