購買 RM707730與BYCHPS
購買即有保證

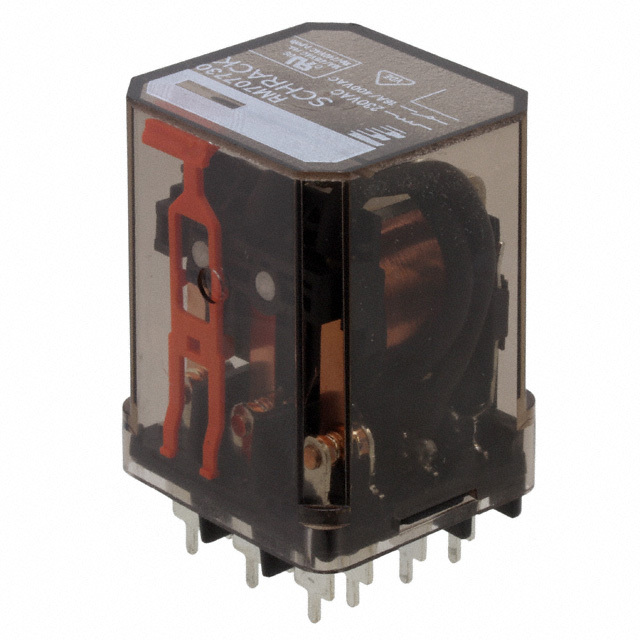

RM707730
- 型號:
- RM707730
- 描述:
- RELAY GEN PURPOSE 3PDT 16A 230V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 19182 Pieces
- 數據表:
- RM707730.pdf
簡單介紹
BYCHIPS是 RM707730的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的RM707730購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 184 VAC |
|---|---|
| 關閉電壓（最小）: | 69 VAC |
| 端接類型: | PC Pin |
| 切換電壓: | 440VAC - Max |
| 系列: | RM, SCHRACK |
| 繼電器類型: | General Purpose |
| 封装: | Tray |
| 其他名稱: | 1393147-2 1393147-2-ND 13931472 RM707730-ND |
| 工作溫度: | -45°C ~ 50°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | RM707730 |
| 特徵: | Mechanical Indicator |
| 展開說明: | General Purpose Relay 3PDT (3 Form C) 230VAC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE 3PDT 16A 230V |
| 觸點額定值（電流）: | 16A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | 3PDT (3 Form C) |
| 線圈電壓: | 230VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 7.5 kOhms |
| 線圈功率: | 2.7 VA |
| Email: | [email protected] |
