購買 RHE070與BYCHPS
購買即有保證

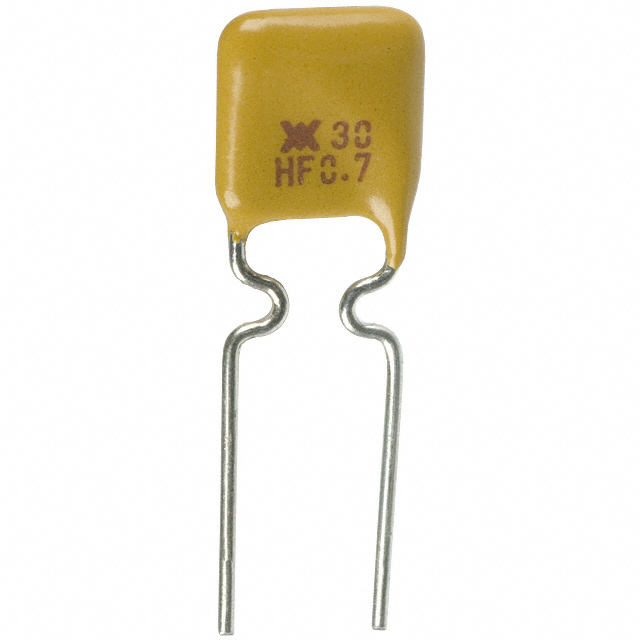

RHE070
- 型號:
- RHE070
- 製造商:
- Littelfuse
- 描述:
- POLYSWITCH RHE SERIES 0.7A HOLD
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 18051 Pieces
- 數據表:
- RHE070.pdf
簡單介紹
BYCHIPS是 RHE070的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的RHE070購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 16V |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 4s |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.272" L x 0.118" W (6.90mm x 3.00mm) |
| 系列: | PolySwitch® |
| 電阻 - 跳閘（R1）（最大）: | 1.4 Ohm |
| 電阻 - 初始（Ri）（最小值）: | 300 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Disc |
| 工作溫度: | - |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | RHE070 |
| 引線間距: | 0.199" (5.05mm) |
| 高度 - 座高（最大）: | 0.425" (10.80mm) |
| 展開說明: | PTC Resettable Fuse 16V Ih Through Hole Radial, Disc |
| 描述: | POLYSWITCH RHE SERIES 0.7A HOLD |
| 電流 - 跳閘（It）: | 1.4A |
| 電流 - 最大: | 40A |
| 電流 - 維持（Ih）（最大值）: | 700mA |
| 認證: | CSA, TUV, UR |
| Email: | [email protected] |
