購買 QXK2J103KTP與BYCHPS
購買即有保證

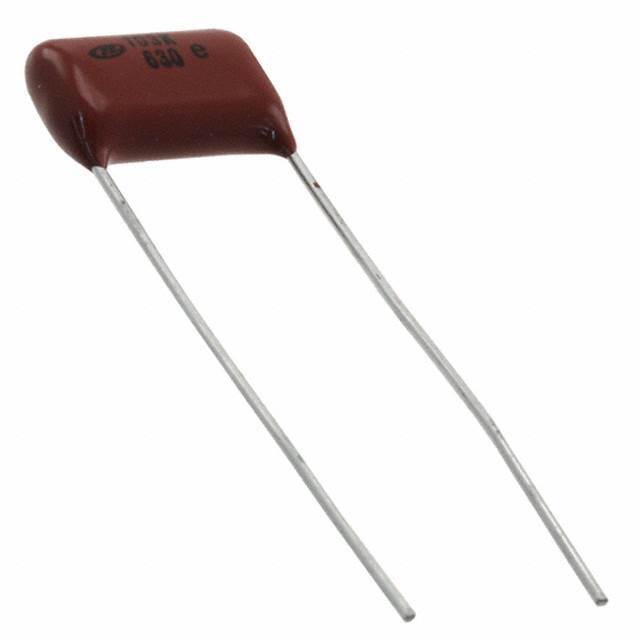

QXK2J103KTP
- 型號:
- QXK2J103KTP
- 製造商:
- Nichicon
- 描述:
- CAP FILM 10000PF 10% 630VDC RAD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16330 Pieces
簡單介紹
BYCHIPS是 QXK2J103KTP的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的QXK2J103KTP購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 630V |
|---|---|
| 額定電壓 - AC: | 250V |
| 公差: | ±10% |
| 終止: | PC Pins |
| 尺寸/尺寸: | 0.532" L x 0.173" W (13.50mm x 4.40mm) |
| 系列: | QXK |
| 封装: | Bulk |
| 封裝/箱體: | Radial |
| 其他名稱: | 493-3543 |
| 工作溫度: | -40°C ~ 105°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | QXK2J103KTP |
| 引線間距: | 0.394" (10.00mm) |
| 高度 - 座高（最大）: | 0.413" (10.50mm) |
| 特徵: | - |
| 展開說明: | 10000pF ±10% Film Capacitor 250V 630V Polyester, Metallized Radial |
| ESR（等效串聯電阻）: | - |
| 絕緣材料: | Polyester, Metallized |
| 描述: | CAP FILM 10000PF 10% 630VDC RAD |
| 電容: | 10000pF |
| 應用: | General Purpose |
| Email: | [email protected] |
QXK2J103KTP的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
QXK2J104KTPTZH | Nichicon | CAP FILM 0.1UF 10% 630VDC RADIAL | 在線詢價 |
 |
QXK2J103KTPTZH | Nichicon | CAP FILM 10000PF 10% 630VDC RAD | 在線詢價 |
 |
QXK2J105KTP | Nichicon | CAP FILM 1UF 10% 630VDC RADIAL | 在線詢價 |
 |
QXK2J473KTPTZH | Nichicon | CAP FILM 0.047UF 10% 630VDC RAD | 在線詢價 |
 |
QXK2J153KTP | Nichicon | CAP FILM 0.015UF 10% 630VDC RAD | 在線詢價 |
 |
QXK2J104KTP | Nichicon | CAP FILM 0.1UF 10% 630VDC RADIAL | 在線詢價 |
 |
QXK2J154KTPTZH | Nichicon | CAP FILM 0.15UF 10% 630VDC RAD | 在線詢價 |
 |
QXK2J153KTPTZH | Nichicon | CAP FILM 0.015UF 10% 630VDC RAD | 在線詢價 |
 |
QXK2J155KTP | Nichicon | CAP FILM 1.5UF 10% 630VDC RADIAL | 在線詢價 |
 |
QXK2J154KTP | Nichicon | CAP FILM 0.15UF 10% 630VDC RAD | 在線詢價 |
 |
QXK2J683KTPTZH | Nichicon | CAP FILM 0.068UF 10% 630VDC RAD | 在線詢價 |
 |
QXK2J223KTP | Nichicon | CAP FILM 0.022UF 10% 630VDC RAD | 在線詢價 |
