購買 PWR221T-30-1002J與BYCHPS
購買即有保證

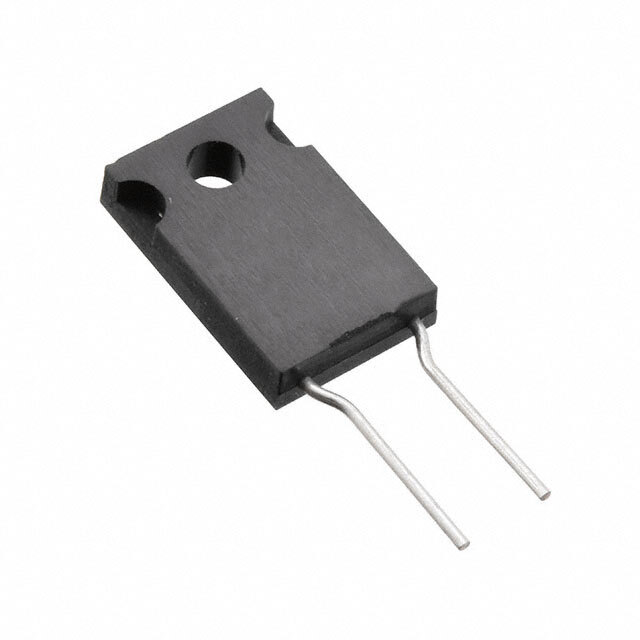

PWR221T-30-1002J
- 型號:
- PWR221T-30-1002J
- 製造商:
- Bourns, Inc.
- 描述:
- RES 10K OHM 30W 5% TO220
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16760 Pieces
簡單介紹
BYCHIPS是 PWR221T-30-1002J的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PWR221T-30-1002J購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 公差: | ±5% |
|---|---|
| 溫度係數: | ±100ppm/°C |
| 供應商設備封裝: | TO-220-2 |
| 尺寸/尺寸: | 0.410" L x 0.125" W (10.41mm x 3.18mm) |
| 系列: | PWR221T-30 |
| 電阻（歐姆）: | 10k |
| 功率（瓦特）: | 30W |
| 封装: | Tube |
| 封裝/箱體: | TO-220-2 |
| 工作溫度: | -55°C ~ 150°C |
| 端子數: | 2 |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | PWR221T-30-1002J |
| 高度 - 座高（最大）: | 0.760" (19.30mm) |
| 特徵: | Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| 失敗率: | - |
| 展開說明: | 10k Ohm ±5% 30W Through Hole Resistor TO-220-2 Automotive AEC-Q200, Current Sense, Pulse Withstanding Thick Film |
| 描述: | RES 10K OHM 30W 5% TO220 |
| 組成: | Thick Film |
| Email: | [email protected] |
