購買 PB2020.153NLT與BYCHPS
購買即有保證

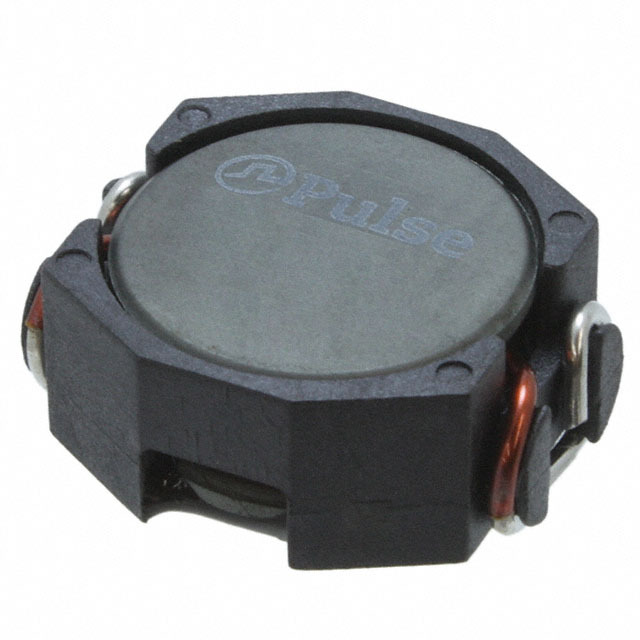

PB2020.153NLT
- 型號:
- PB2020.153NLT
- 描述:
- FIXED IND 15UH 9.7A 13 MOHM SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15948 Pieces
簡單介紹
BYCHIPS是 PB2020.153NLT的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PB2020.153NLT購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±20% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.940" L x 0.820" W (23.87mm x 20.83mm) |
| 屏蔽: | Unshielded |
| 系列: | PB2020NL |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 553-1999-2 PB2020.153NLT-ND PB2020153NLT |
| 工作溫度: | -40°C ~ 130°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | - |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | PB2020.153NLT |
| 電感: | 15µH |
| 高度 - 座高（最大）: | 0.400" (10.16mm) |
| 頻率 - 自諧振: | - |
| 展開說明: | 15µH Unshielded Wirewound Inductor 9.7A 13 mOhm Max Nonstandard |
| 描述: | FIXED IND 15UH 9.7A 13 MOHM SMD |
| 直流電阻（DCR）: | 13 mOhm Max |
| 目前評級: | 9.7A |
| 電流 - 飽和: | 18A |
| Email: | [email protected] |
