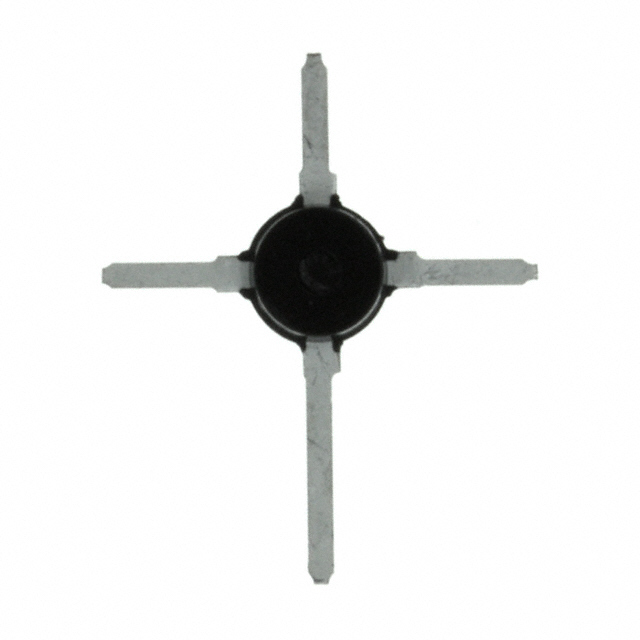

MRF581A
- 型號:
- MRF581A
- 製造商:
- Microsemi
- 描述:
- TRANS NPN 15V 200MA MACRO X
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 19355 Pieces
- 數據表:
- MRF581A.pdf
簡單介紹
BYCHIPS是 MRF581A的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的MRF581A購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 15V |
|---|---|
| 晶體管類型: | NPN |
| 供應商設備封裝: | Micro-X ceramic (84C) |
| 系列: | - |
| 功率 - 最大: | 1.25W |
| 封装: | Bulk |
| 封裝/箱體: | Micro-X ceramic (84C) |
| 其他名稱: | MRF581AMI MRF581AMI-ND |
| 工作溫度: | 150°C (TJ) |
| 噪聲係數（dB典型值@頻率）: | 3dB ~ 3.5dB @ 500MHz |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | MRF581A |
| 獲得: | 13dB ~ 15.5dB |
| 頻率 - 轉換: | 5GHz |
| 展開說明: | RF Transistor NPN 15V 200mA 5GHz 1.25W Surface Mount Micro-X ceramic (84C) |
| 描述: | TRANS NPN 15V 200MA MACRO X |
| 直流電流增益（HFE）（最小值）@ IC，的Vce: | 90 @ 50mA, 5V |
| 電流 - 集電極（Ic）（最大）: | 200mA |
| Email: | [email protected] |
