購買 MF-R250-AP與BYCHPS
購買即有保證

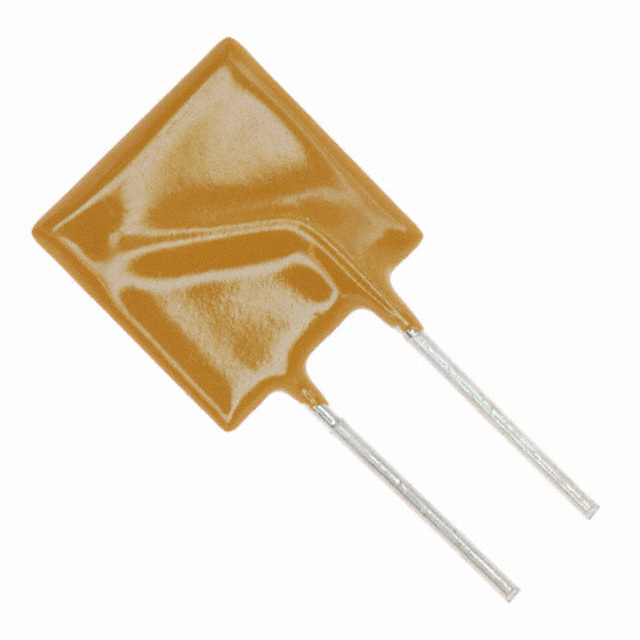

MF-R250-AP
- 型號:
- MF-R250-AP
- 製造商:
- Bourns, Inc.
- 描述:
- FUSE PTC RESET
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16474 Pieces
- 數據表:
- MF-R250-AP.pdf
簡單介紹
BYCHIPS是 MF-R250-AP的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的MF-R250-AP購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 30V |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 10.3s |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.472" L x 0.118" W (12.00mm x 3.00mm) |
| 系列: | Multifuse®, MF-R |
| 電阻 - 跳閘（R1）（最大）: | 70 mOhm |
| 電阻 - 初始（Ri）（最小值）: | 25 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | - |
| 封装: | Tape & Box (TB) |
| 封裝/箱體: | Radial, Disc |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 7 Weeks |
| 製造商零件編號: | MF-R250-AP |
| 引線間距: | 0.201" (5.10mm) |
| 高度 - 座高（最大）: | 0.720" (18.30mm) |
| 展開說明: | PTC Resettable Fuse 30V Ih Through Hole Radial, Disc |
| 描述: | FUSE PTC RESET |
| 電流 - 跳閘（It）: | 5A |
| 電流 - 最大: | 40A |
| 電流 - 維持（Ih）（最大值）: | 2.5A |
| 認證: | cURus, TUV |
| Email: | [email protected] |
